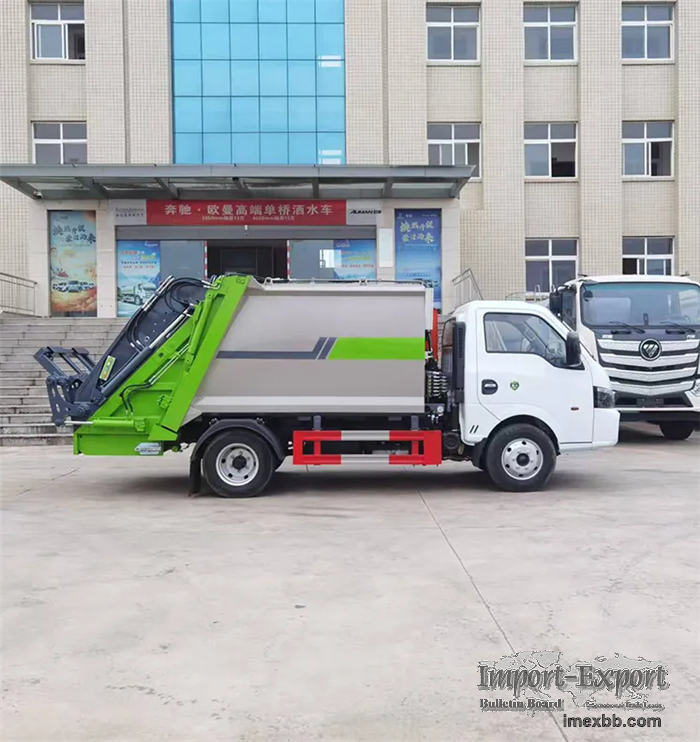

DONGFENG 5.8CBM GARBAGE COMPACTOR TRUCK

This garbage compactor truck is made of Dongfeng chassis and garbage body,
filler, shovel, loading mechanism, hydraulic system, electric control system
and other components.
It adopts afterloading bidirectional compression technology, hydraulic and
electrical core components to select high-quality components with high working
efficiency, high working stability, simple and beautiful appearance.
The control mode and operation mode are humanized, and it is a reliable and
simple garbage collection and transfer vehicle.
2.Functional profile
It has many functions such as garbage collection, automatic garbage loading and
compaction, garbage transfer and dumping.
3.Range of application
Dongfeng 5.8CBM Garbage Compactor Truck is mainly used for the collection and
transfer of barreled, bagged and bulk domestic waste in urban residential
areas, communities, large factories and mines, institutions and colleges, and
narrow streets in the old city.
Item unit Parameter
Overall dimension Length, mm 5800
width mm 2000
height mm 2300
Wheelbase  mm 2700,2950
Rated load mass: kg 3550
Quality of service kg 1500
Gross mass Kg 5000
Chassis model, category, manufacturer /  Dongfeng Chassis
Number of passengers seat 2
Engine model, production enterprise / Anhui Quanchai power Co.,
LTDQ23-95E60
Engine rating KW 70kw
Maximum design speed km/h 95
Maximum gradient / ≧30%
Approach Angle o 27.7
