Double Drive HSE25-2-2 Heavy Duty Vehicle Series

Slewdrive can also be called slew drive gearbox. Most of our slewing ring drive
is kind of worm gear reducer. And the slew ring bearing is a gear drive part.

The double-drive Heavy duty vehicle series can achieve 2 times the tooth
contact on the single drive base, which makes it can produce nearly double the
output torque in the same volume and installation space, greatly improving the
performance of the product, while maintaining the torque is doubled.
Improvement.

Heavy duty vehicle series rotary reducer features
Double worm drives the slewing ring at the same time, the output torque is
larger, and the performance is far superior to the single-tube structure.
Flexible input interface form, convenient for customers to choose various
hydraulic motor and geared motor connection input.

Supply Ability of Double Drive HSE25-2-2 Heavy Duty Vehicle Series
We can provide you with detailed technical parameters for the double cylinder,
including customized requirements.

Application of Double Drive HSE25-2-2 Heavy Duty Vehicle Series
Heavy duty vehicle series products are widely used in the relative rotating
parts of the mechanical field.
Drive the wheel of the module to rotate (shipyard, large structural parts).

Performence Parameters of Rotary Reducer
Output Torque 43.6 kN.m
Overturning monent 52.3 kN.m
Holding Torque 167 kN.m
Axial static load 1058 kN
Static radial rating 421 kN
Axial Dynamic load 265 kN
Gearing Ratio 82:1
Radial dynamic load 216 kN
Tracking Precision ≤0.15°

You may also like

Minimum Order: 10 sets

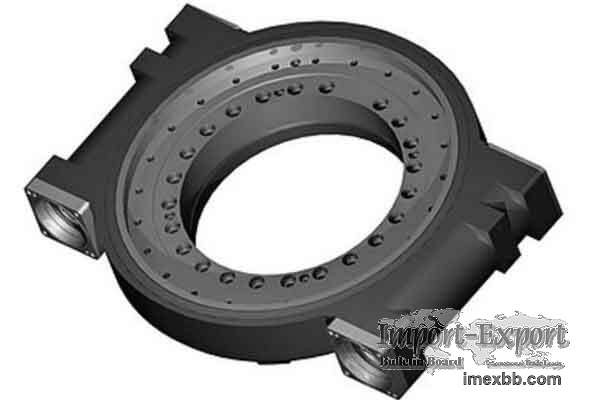

Double Drive HSE25-2-2 Heavy Duty Vehicle Series
