Double Heads Large CNC EDM Machine

CNC Die Sinking EDM Machine, also known as CNC EDM die sinking and CNC Spark
Erosion Machine provided by one of the professional CNC EDM machine suppliers,
DMNC, is a kind EDM machine that utilizes high-frequency power between positive
and negative anodes (electrode and workpiece), 3-axis or more axes controlled,
to break through the gap between electrode and workpiece, to create high
temperature to melt and remove metal to get needed profile cavity. It's like a
projective copy of the profile of the electrode on the workpiece.

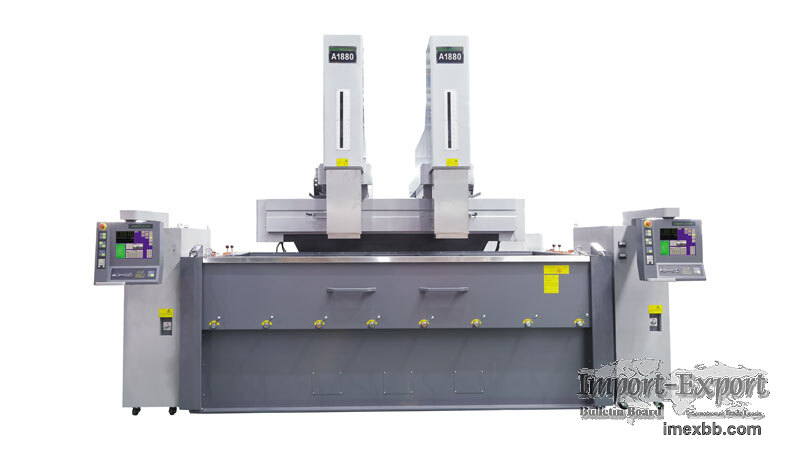

Twin-head large EDM CNC sparking machine has two separated spindle heads and
two separated controllers, also called double column large EDM machine, it was
developed for some kinds of molds with very large size. Max table size could be
up to 3500mm, and load capacity up to 20000kgs. Besides, two separated CNC
electric discharge machines could be performed at the same on different
locations of one mold. Of course, the dynamic and mechanical of double head CNC
EDM is not as good as single-head CNC EDM die sinking EDM machine.

Double Heads Large CNC EDM Machine Highlights


5th generation EDM machining control system.

Double heads with the capacity of two separated machining at the same time.

Smart expert database.

Excellent performance of both cooper and graphite electrode machining.

Min machining current 0.1A.

Best surface finish Ra≤0.2µm.

Min. wear of electrode ≤0.05%.

2 years of aging treatment of casting of the machine.

Ram type structure, fixed working table, heavy load capacity.

Obtained national design patent of rotary panel cabinet.

Man-machine engineering friendly.

Optimized high-frequency power control system.

Most efficient control circuits.

Machine body had been analyzed by finite element analysis.

High-quality casting with enhanced structural ribs.
