Double layer woven dryer fabric for paper making

Double layer woven dryer fabric for paper making
Polyester woven dryer fabrics/Polyester woven dryer screen

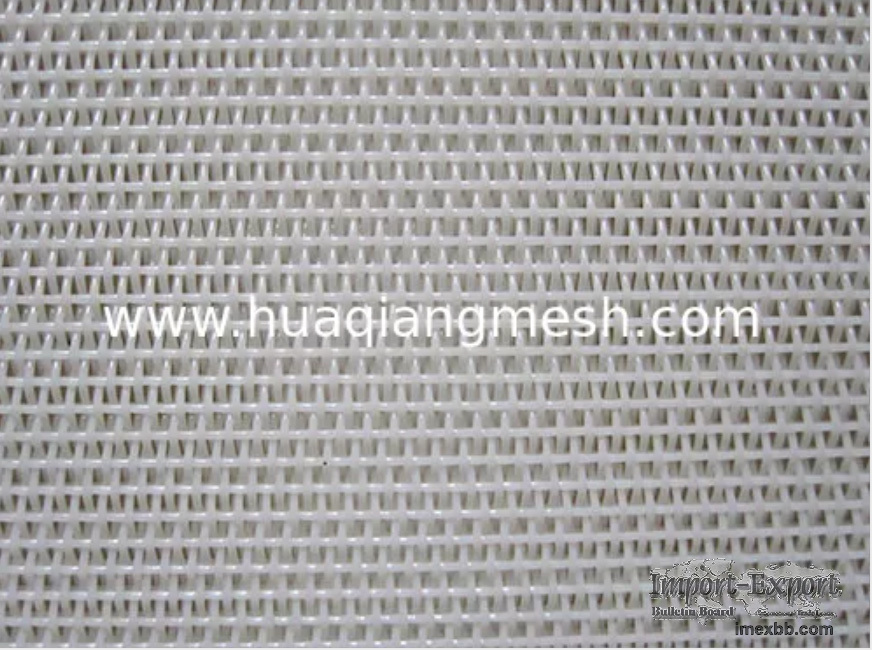

Woven dryer screen made from high grade flat monofilament and round
monofilament polyester yarns.
According to the weaving, woven dryer fabric can be divided into 3-shed, 4-
shed. According to the category,polyester dryer fabric can be divided into one
and a half layer, double layer and rectangular wire fabric.
According to the joining mode, it can be divided into insert, pin, pin ring and
spiral ring joint.
3-shed one and a half polyester dryer fabric is suitable for drying papers
below 70g.
4-shed double layer polyester dryer fabric is suitable for drying papers above
70g.
We offering for increased drying rate, improved paper quality and energy
savings. It suitable for
the fore several heating box of the drying zone, quality papers can use all.
Material: Polyester,Teflon,PPS.
Color: ,  White,Red.
Seam type: Pin joint,Spiral seam.
Application:Used in the dryer section of paper machine to produce newprint
paper, writing paper, carbonless paper, copper print, etc.

Technical data of Polyester woven dryer fabrics
Type Fabrics
number Thread
diameter(mm) Strength
(N/cm) Weight
(kg/m2) Thickness
(mm) Air
permeability
(m3/m2 h)
warp weft surface Ring joint
  spiral joint
 Three-shed D6352 0.50 0.50   2000 900 1400 1.06
1.9 8000
 Four-shed D6442 0.50 0.50 2000 900 1400 1.26 2.1
12000
Round wire
dryer fabrics D8006 0.50 0.70
0.30 2200 900 1500 1.3 1.75 6800
Flat wire dryer fabrics D8006-1 0.58
0.37 0.5
0.5 2000 800 1400 1.2 1.5 2500
D8006-5 0.29
1.00   0.9/0.98 2600 900 1800 1.33 1.54 19
