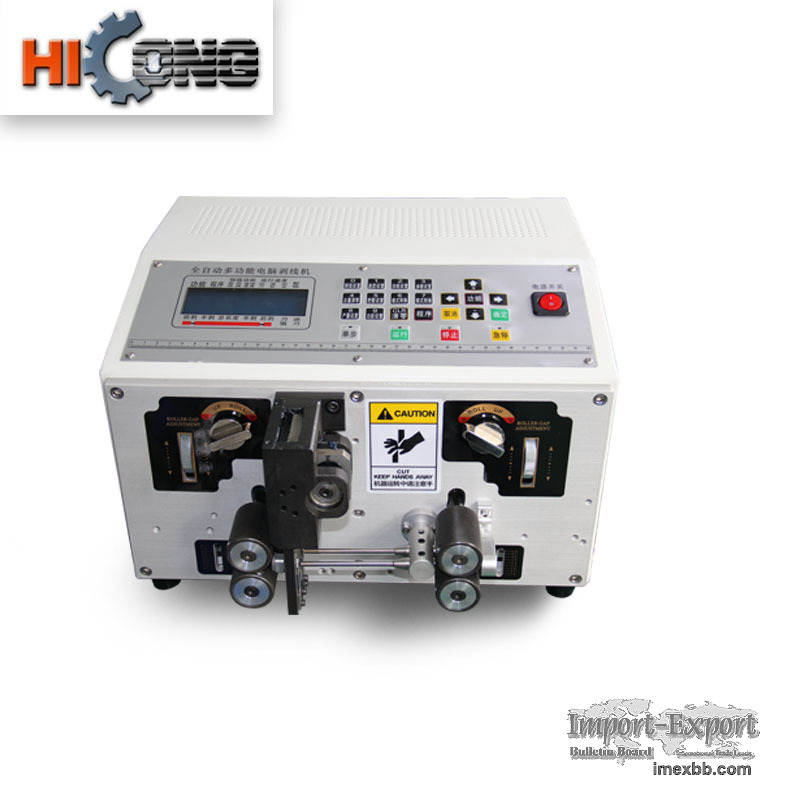

Double-line 2.5 square wire cutting machine

Product Parameters
Model: Dual-wire 2.5 square wire cutting machine
Power supply: AC 110Y/220V/50/60Hz
Dimensions: 390x350x255
Display: Chinese and English LCD display
Weight: 30kg
Power Rate: 1G0(W)
Cutting Length: 1-9999mm
Cutting Tolerance: (0.2-0.002xL)mm
Cutting Error: Correctable
Stripping Length: 0-35mm for the beginning of the wire, 0-15mm for the end of
the wire
Center Stripping: 11 stripping locations
Wire Cross-Section: 0.2-2.5mm
2LAWG (16#-AWG30#) Maximum Conduit Diameter: 46mm
Applicable Wires: PVC, Teflon, Silicone, Fiberglass
Blade Material: Hard Tungsten Steel (Imported Stainless Steel Optional)
Stripping Speed (Pieces/Hour): 3000-8000 Pieces/Hour (L=100mm) (High Output)
Drive Mode: Two-Wheel Drive
Machine Description
1.The fully automatic computer wire stripping machine, which integrates
electromechanical and microcomputer, is a fully automated CNC equipment that
has introduced advanced technology from Japan and Taiwan.
2.It is widely used in the wiring harness processing of various products such
as the electronics industry, auto parts industry, electrical appliances,
motors, lamps, toys, etc.
3.Suitable wire materials for stripping include PVC/Teflon silicone wire/glass
fiber, etc.
4.This product adopts LCD screen human dialogue mode, and has the main features
of beautiful appearance, simple operation, convenient maintenance, stable
performance, fast speed and high accuracy.
5.The wire length can be set arbitrarily and modified according to customer
requirements. It can strip wires of different thicknesses and also has the
function of cutting flat cables, sheathed cables, power cables and casings.

Minimum Order: 1 pieces
