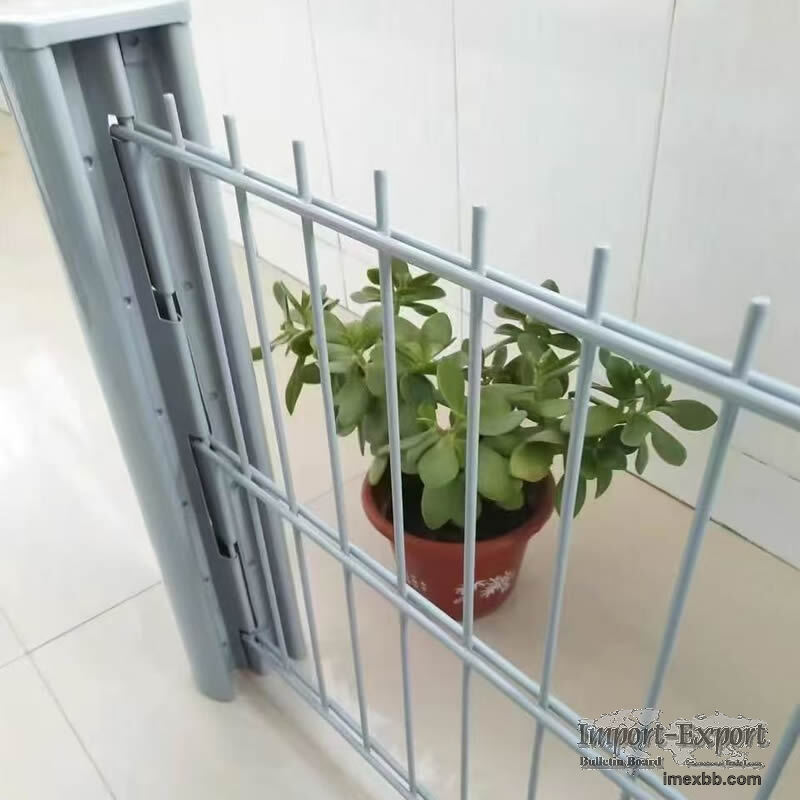

Double Wire Fence

Double wire fence, also called twin wire fence or 868 fence, is made from Q195
or Q235 low carbon steel wire. The structure has two horizontal wires welded to
one vertical wire at each intersection. The most common specification is 868 —
8mm horizontal twin wires and 6mm vertical single wire
Youzi Development Zone, Anping County, Hebei, China
sales@wiremesh-fence.net
+86 133 8338 1333 / +86 13303187905
www.wiremesh-fence.net
Double Wire Fence is made from welded steel wire with two horizontal wires and
one vertical wire at each mesh line. This structure gives the panel better
stiffness than common single wire welded mesh fence. It is used for schools,
factories, parks, residential areas, public facilities, warehouses, and road
side fencing. Regular mesh size is 50 x 200 mm. Common wire combinations
include 8 x 2 + 6 mm, 6 x 2 + 5 mm, and 6 x 2 + 4 mm. Panel width is usually
2500 mm. Surface finish can be galvanized, PVC coated, or powder coated
according to order requirements.

Specifications
Product Name: Double Wire Fence

Other Names: 868 fence, 656 fence, double horizontal wire fence, twin wire mesh
fence

Material: Low carbon steel wire or galvanized steel wire

Processing: Welded wire mesh panel

Panel Width: 2500 mm

Panel Height: 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1630 mm, 1830 mm, 2030
mm, 2230 mm, 2430 mm

Mesh Size: 50 x 200 mm

Wire Diameter: 8 x 2 + 6 mm, 6 x 2 + 5 mm, 6 x 2 + 4 mm

Post Height: 1100 mm, 1300 mm, 1500 mm, 1700 mm, 1900 mm, 2100 mm, 2400 mm,
2600 mm, 2800 mm, 3000 mm

Surface Finish: Galvanized, PVC coated, powder coated, or galvanized before
coating

Color: Green, black, gray, white, and other colors by order

Post Type: Square post, peach post, round post, or custom post

Fittings: Clips, clamps, bolts, post caps, base plates, and matching gate
fittings

Application
School and Park Fencing: Used for open boundary fencing where visibility
through the fence is needed.

Factory and Warehouse Fencing: Suitable for workshop perimeters, storage yards,
and internal separation areas.

Residential and Garden Fencing: Used for community boundaries, garden fences,
and private property lines.

Public Facility Fencing: Applied to road side areas, municipal projects, sports
fields, and public buildings.
