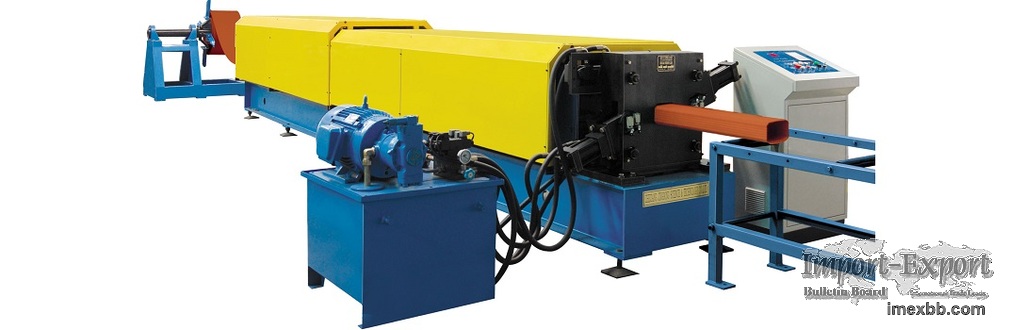

Downspout Roll Forming Machine

This downspout roll forming machine can produce the sealed color water pipes by
forming the colored steel sheet and whipstitch it. The downspout forming
machine adopts a PLC control system, AC frequency conversion speed-adjust
technology, therefore it can automatically cut to length. This is the original
color steel downpipe roll forming machine in China with carious freedom
intellectual property and national patent.
The most standard size is 134*93mm and 153*106mm, and the suitable coil
thickness and strength range is 0.5-0.6mm, 235-345Mpa for reference. After down
pipe forming, we also have the curving pipe forming machine.
We can design and manufacture downspout machines for forming different profiles
according to customers' requirements.
Downspout machines / Downpipe machine for sale on jinggongmachine.com, feel
free to contact us!

Parameter Of Downspout Roll Forming Machine
Item Parameter
Model HS-134 HS-118
Downpipe section specification 134×93 118×89

Material Type Color steel sheet
Thickness 0.45-0.55
Yield strength 230-300
Forming speed 10
Roller material 45# Steel with chrome-plated
Roller driven type Chain transmission
Controller PLC
Operation Touch screen+button
Hydraulic system pressure 12
Hydraulic station motor power 7.5
Main motor power 3
Total power 10.5
Total weight 8000



Technics flow Of Downspout Roll Forming Machine
Decoiling →guiding and feeding→roll forming →cut to length →run out table

Panel Drawings Of Downspout Roll Forming Machine

Jinggong is a professional purlin roll forming machine manufacturers, we
provide c purlin roll former, building materials equipment, construction
materials equipment, sandwich panel lines, downpipe machine for sale and etc.
Want to know more? Please contact us.

Minimum Order: 1 sets
