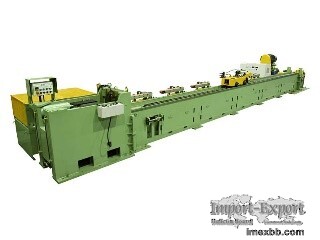

Drawbench - HS200

Motor: 30HP
Applicable material: brass, aluminium, steel and alloy tube and rod
Applicable size: Ø26 / Ø16
Working range: 15~30%



Applications and features:
1. Seesaw-type drawbench with the chain-driven carriage to pull out the
rolled or extruded tubes for better precision.
2. Suitable for small quantities of metal rods of various sizes with
support from a push pointer for the automation of the entire cold drawing
process.
3. Cold drawn materials improve the hardness, yield and tensile strength of
the material.
4. Option to combine length cutting or straightening processes after cold
drawing for better production efficiency.
5. Pulling force, speed, and drawing length could be custom-made according
to the practical process deriving from the material composition.
6. Relevant working processes: Extrusion, sand-blasting, pickling,
coating, heat treatment, cutting, straightening
