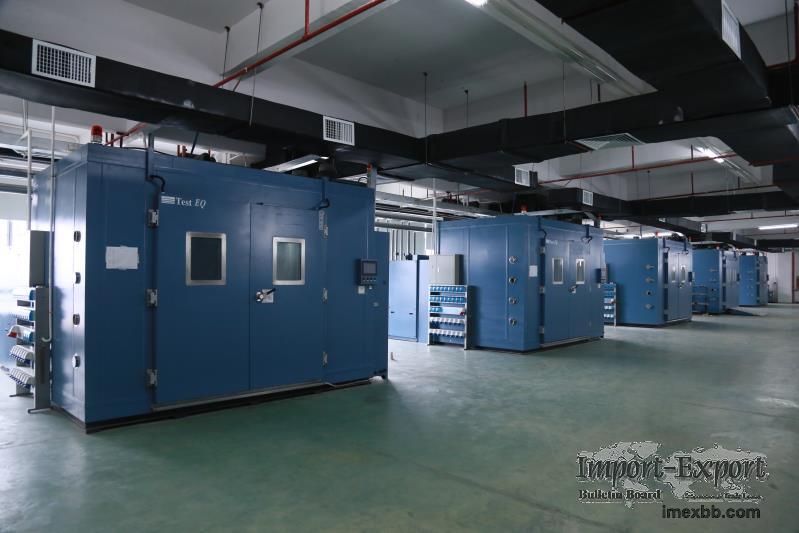

Drying Walk In Environmental Chamber

Application
Dry walk in environmental chambers are a special type of walk in environmental
chamber specially designed for drying or dehumidification applications. These
chambers provide controlled conditions to remove moisture from products,
materials or samples. JOEO Drying Walk in Environmental chamber are ideal for
automotive, computer, battery, defense and other industries
According to market demand and customer requirements, JOEO has extensive
experience in battery testing technology, JOEO has configured dry walk in test
chambers for battery production to meet low humidity, such as 5%R.H -10%R.H. A
continuously dry indoor climate is one of the key technologies in the
production of high-performance lithium-ion batteries for electric drive.
DRYING WALK IN ENVIRONMENTAL CHAMBER STRUCTURE
Interior material: SUS # 304 stainless steel plate (1.5 mm thickness ).
Exterior material: cold rolled steel, galvanized anti-rust treatment with
advanced resin paint coating.If you need more models about our test equipment,
please reference our chamber-testing（.）com
Insulation material: German Bayer fire-resistant high-strength PU polyurethane
foam insulation material +ultra-fine glass fiber.
Heat preservation material: imported rigid rock wool rock wool (CSR 120 k).
In addition, in order to prevent glass frosting when running low temperature,
we setup a heating wire inside to get it de-frosting.
Both sides of chamber are equipped with a test cable port with diameter 100mm,
the silicon plug is with high low temperature resistance.
Heater: Fin type radiator pipe shaped stainless steel electric heater.
