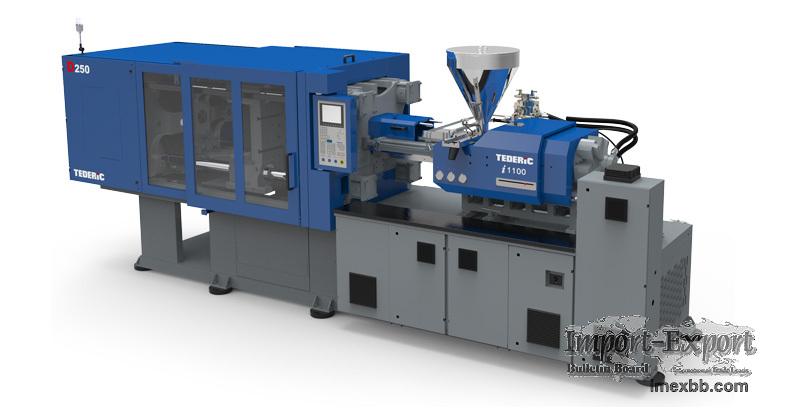

DT-i Servo Energy-saving Injection Molding Machine

Introduction
DT-i servo energy saving injection molding machine is basically the High
rigidity double elbow five hinge clamping mechanism, equipped with balanced
moving dual-cylinder and injection unit. After dozen years of R&D, improvement
and accumulation of manufacturing experiences, this series has acquired great
trust and admiral from domestic and overseas clients by its advanced design
concept and reliable parts configuration. The clamping force of DT-i servo
injection moulding machine range from 1000KN to 40000 KN, and injection size
from 168cm³ to 67906cm³. DT-i IMM machine is a hydraulic plastic molding
machine that employs hydraulic cylinders to clamp together two halves of a mold
at high pressure. Plastic substrate pellets are then melted, and the liquid is
injected into the mold cavity. Once the plastic has cooled and hardened, the
mold halves are separated, the part is extracted, and the process is repeated.
Hydraulic molding is a popular choice for the automotive industry, which
requires the production of large, heavy parts such as bumpers. Compared with
electric machines, the hydraulic double injection moulding machine has greater
clamp force for large parts, better injection rates and ejection capability.
Tederic is a top hydraulic moulding machine manufacturer in China, who offers
various hydraulic imm machines including DT-i, DT-M(F), DT-JI, DT-JII, DH-i
series, etc.

Design Highlights：
Flexble Design
Modularized design, to provide customers with wider choice on machine
dimension.
Reduced Oil Leakage
Feature:
High molding precision: injection weight repeatability precision is up to 0.3%

High repeat position precision: repeatability precision of mold opening and
injection position within ± 0.5 mm.

Energy saving injection machine whole scheme: deploying of high-efficiency
parts and energy saving-oriented design on mechatronics system.

Leading servo dynamic system: 30ms response, and to save 30%~80% energy
compared to the traditional hydraulic system.


Tederic Machinery Co., LTD operates as an world-renowned plastic injection
molding machine manufacturer and solutions provider. The company is renowned
amongst customers for its excellent product performance , satisfactory
technical support and after sales service.



Tederic injection was founded in 2003, having two main factories in China
currently，one is Tederic headquarters and one is Tederic Heavy machinery
factory, which are located in Hangzhou City and Huzhou City respectively. The
total plant area are 120,000 square meters and the total number of employees is
more than 800. We praise the concept of innovation and implements which by
spirit of improving every day. After 16 years of continuous development and
putting efforts, Tederic has become one of the top three enterprises in China's
injection molding machine industry in terms of comprehensive strength. In 2017,
Tederic machinery co., LTD was listed on the main board of the Shanghai stock
exchange (SH603289), and it is also the first injection molding machine company
listed on the main board of China.

Minimum Order: 1 sets
