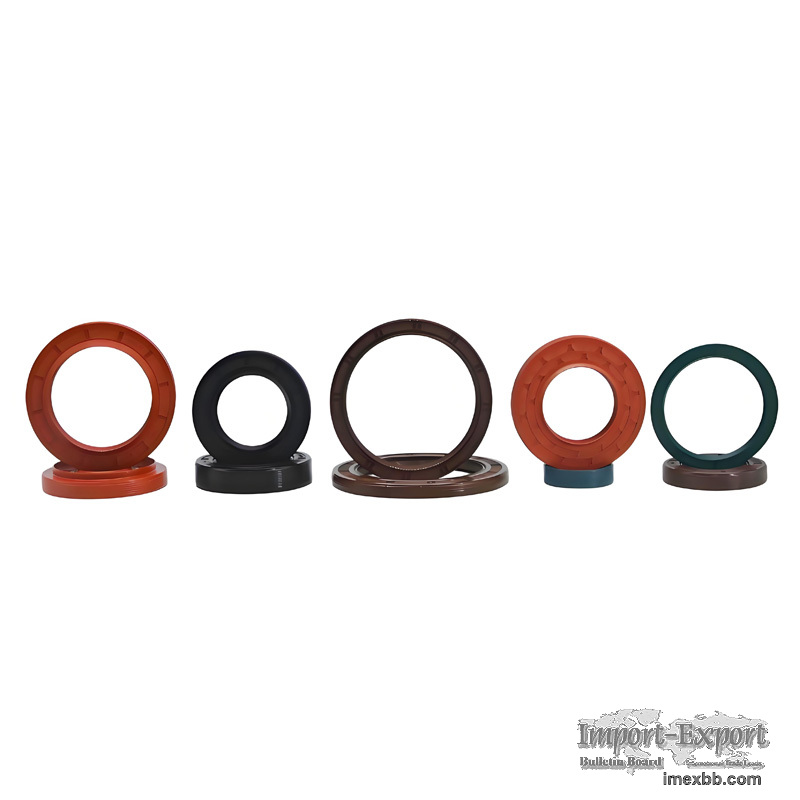

Dual Lip Camshaft Seals for High Temperature High Speed Applications

If you’ve spent time around timing covers, you already know the pattern: a
camshaft seal that has hardened or lost preload will first leave a film of oil
near the cover, then a faint burnt‑oil smell, and—on bad days—wisps of smoke
when oil reaches hot exhaust parts. Oil leaks and smoke from the engine bay are
among the most common signs of a failing camshaft seal, and this issue is
especially relevant to belt‑driven OHC layouts. Typical root causes include
dried rubber and abnormally high oil pressure (e.g., a stuck relief valve).

Camshaft seal uses a metal/rubber case for a press fit in the housing, a garter
spring to maintain lip load, and a primary sealing lip with asymmetric angles
so the contact line develops a pressure distribution that favors lubricant
return. Some designs add a dust/exclusion lip; when used, keep the inter‑lip
space lubricated to control heat.

Functionally, this location does not see full hydraulic system pressure; it
sees splash oil and crankcase pulses. If the crankcase ventilation is
restricted or the head gallery dynamics are off, lip loading and differential
pressure change and leaks follow—exactly the scenario described in practical
notes on “too much oil pressure.”

Target surface finish around Ra 0.2–0.8 µm; avoid spiral lead and
eccentricity.

Housing tolerances should support a secure interference without distorting the
case.

Dual‑lip solutions improve dirt exclusion, but manage heat with lubricant and
proper venting.

2) Materials and operating window

· NBR (nitrile): good oil resistance and value for money—bread‑and‑butter
for many passenger cars.

· FKM (fluoroelastomer): superior heat and chemical resistance—preferred for
hot engines, extended service intervals, and biofuel blends.

· HNBR / AEM / ACM: configurable trade‑offs among heat/oil/ozone resistance
for specific engine families.

· PTFE‑based lips: low friction, good for dry starts and high‑speed
platforms.

Hardness typically sits around 70–85 Shore A to balance sealing force and
wear. Temperature capability depends on compound (a common envelope is ‑40 to
+250 °C). Pressure at the cam end is usually low; what matters more is
pulsation and return‑oil behavior, not static pressure rating. Again, that
matches public explanations that drying/hardening and oil‑pressure
irregularities are primary triggers.

Oil trace at the timing cover or spots under the car;

Smell or visible smoke in the engine bay when oil reaches hot exhaust pieces;

Contaminated belt leading to slip/noise and timing scatter.

A widely used practice is to inspect/replace the camshaft seal when the timing
belt/chain is serviced—you save duplicate labor and avoid a comeback caused by
a marginal old seal.

Focus on platforms where the cam nose exits the cover: passenger cars and light
trucks, heavy‑duty trucks and construction equipment engines, gensets, marine
diesels, and certain rail/industrial engines. Those are the domains where
distributors move volume and service shops need quick turnaround.

5) The camshaft seal series

Product scope

· Standard spring‑loaded elastomer lips (NBR/FKM/HNBR etc.);

· Low‑friction PTFE composites for high speed or hot duty;

· Single‑lip / dual‑lip with dust exclusion;

· Coated outer cases to compensate minor bore imperfections.

6) FAQ

Q1 – Which compounds and sizes should I stock?

Focus on NBR/FKM in the popular OE diameters for mainstream
Asian/European/American engines. Keep HNBR/PTFE for hot‑running or high‑duty
fleets.

Q2 – Lead time and MOQ?

Standard items ship the same day. For specials, MOQ depends on tooling and test
plan; expedited pilot lots are available for urgent programs.

Q3 – Can you help with failure analysis?

Yes. Send photos of the contact band and shaft wear pattern; we’ll assess lead
marks, eccentricity, or lip damage and propose compounds/geometry adjustments.

Q4 – Packaging and traceability?

Each batch carries a barcode and material lot number, with outbound test
records for audits and after‑sales traceability.

Q5 – Service timing advice?

Align seal replacement with timing belt/chain service to avoid duplicate labor
and reduce comeback risk.

Source notes for the above symptoms/causes: consumer‑facing but technically
reviewed write‑ups documenting oil leak & engine‑bay smoke, “belt‑engine
layouts,” and failure drivers like dried seals or excess oil pressure. They
match field observations and give owners and shops a common language for
decisions.

Minimum Order: 500 pieces

Click to Enlarge
