Duct Rodders Standard and Detectable Fiberglass Rods for feeding through conduit



Duct Rodders Standard And Detectable Fiberglass Rods For Feeding Through Conduit 0
Fiberglass duct rod or duct rodders and commonly called python rod by its nature
passing through under ground ducts by ups, down negotiating the duct curvature thus
very convinient to pull the cables , wires inside the duct , also it can be used to
locate the duct block or damage portion identifications . its has high safety
aspects to use underground applicartions because of its non conductivity of
electricity, sets a major safety to site workers .

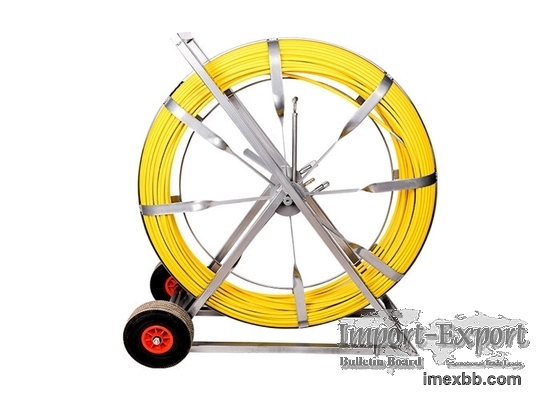

It has been built with rigid sturdy steel tubular fabrication for easy usage at
site and can be self coiled in the tubular frame and easily roll like trolley on
ground by its wheels fitted at bottom .
The ducts rodders normmaly comes in various diameters from 4.5 mm to 16 mm as per
ground applications. normally 10 mm dia FRP rodders used for pulling, cleaning and
locating blocks in Fiber optic Cable network applications .

Duct Rodders Standard And Detectable Fiberglass Rods For Feeding Through Conduit 1

Specification



Specification
Rod Diameter (mm)
Φ4.5,Φ6,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13,Φ14 , ,Φ15,Φ16
Rod Length (m)
30~500
Frame Spec.(cm)
50*40*15, 67*55*16, 76*66*16, 95*90*48, 105*100*48, 130*120*48, 150*140*48
Color
Blue, yellow, red, white etc



Material
Rod Inner
Extruded by fiber glass and high strength resin at high temperature
Rod Outer
High Density polyethylene coating
Frame
Steel with high-temperature Spray coating
Wheel
Rubber
Drawing head
Copper


Physical Characters
Density
55g/m
Working temperature
-40°C to +80°C
Breaking tension
100kg
Bending Radius
295mm
Technology
Pultrusion

Packaging
Inside
Plastic woven strip wind around the frame
Outside
Carton, Wooden Pallet or Wooden Crate
