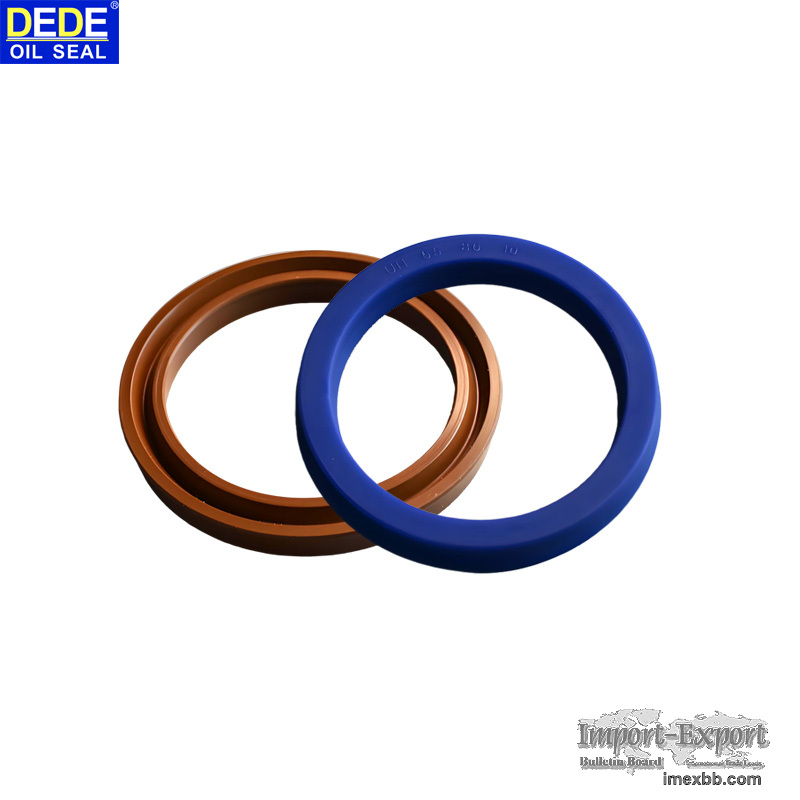

Durable FKM and PU Oil Seals for Hydraulic Systems

When it comes to selecting the ideal material for hydraulic pressure oil
seals, two names often come up: FKM (Fluoroelastomer) and PU (Polyurethane).
Both materials are commonly used in sealing solutions for hydraulic systems,
but which one is the best? The answer is not as simple as picking one over
the other; the choice largely depends on your system’s specific operational
conditions.

The Key Considerations: Temperature, Pressure, and Wear Resistance

Before diving into the debate, it’s important to understand the key factors
influencing material performance in hydraulic systems. These factors are
primarily temperature, pressure, and wear resistance. Let’s examine how FKM
and PU perform in these areas.

FKM (Fluoroelastomer): The High-Temperature Champion

If your hydraulic system operates in a high-temperature environment, FKM is
likely your best bet. FKM seals offer exceptional resistance to high
temperatures and chemical exposure, making them ideal for systems that
operate in harsh conditions. FKM can withstand temperatures as high as
200°C without losing its sealing properties. This makes it perfect for
systems that are exposed to high oil temperatures or operate in areas close
to heat-generating components, such as motors or pumps.

The material’s ability to maintain its structure under heat ensures long-
lasting performance, with minimal wear and tear. Furthermore, FKM is known
for its excellent resistance to aggressive fluids, including mineral oils,
fuels, and lubricants. If your system’s primary challenge is heat and
chemical exposure, FKM seals provide a reliable, durable solution.

PU (Polyurethane): The High-Pressure and Wear Resistance Specialist

On the other hand, when high pressure and constant dynamic movement are
factors, PU (Polyurethane) stands out. PU seals excel in high-pressure
environments, offering superior resistance to extrusion and wear. Hydraulic
systems with piston and rod seals, for example, benefit from PU's ability to
withstand high impact forces and abrasive conditions, which is common in
applications requiring frequent movement.

PU seals can handle pressures up to 30 MPa or higher and are ideal for
systems that experience frequent cycles or high-frequency pulses.
Additionally, PU is more resistant to tearing and wear than many other
elastomers, making it the preferred choice for systems that involve moving
parts that undergo significant stress.

However, one limitation of PU is its performance in high-temperature
environments. Polyurethane tends to lose some of its mechanical properties
when exposed to temperatures above 100°C for extended periods. While this
is not an issue in lower-temperature systems, for extreme heat, FKM would be
a better option.

Matching the Right Material to Your Application

Ultimately, the best material depends on what your hydraulic system needs to
perform optimally. Here's a quick breakdown:

For high-temperature, low-pressure applications: FKM is your material of
choice. It’s especially effective in systems that need long-term stability
at elevated temperatures and exposure to chemicals.

For high-pressure, dynamic, and wear-intensive environments: PU is likely a
better option. Its exceptional wear resistance and high-pressure tolerance
make it ideal for heavy-duty, high-frequency applications.

Other Considerations

It’s also worth noting that the type of hydraulic fluid in use can
influence the material choice. Some oils may cause certain materials to
degrade more quickly, so it’s essential to consider the compatibility of
the sealing material with the specific fluid. FKM is generally more
resistant to a broader range of fluids, while PU may not perform well in
some chemically aggressive environments.

Conclusion: Which One is Right for You?

In conclusion, both FKM and PU are excellent choices for hydraulic pressure
oil seals, but their suitability depends on your system's operational
conditions. If heat and chemical resistance are your primary concerns, FKM
is the clear winner. If high pressure, dynamic movement, and wear resistance
are your focus, then PU should be your go-to material.

Always consider your system's specific needs—temperature ranges, pressure
levels, and the nature of the hydraulic fluid—to ensure you choose the
right sealing material. By selecting the right material, you’ll ensure that
your hydraulic system runs smoothly, efficiently, and with fewer maintenance
requirements.
