durable waterproof Ceiling tile no denting in size 603*603mm

Ceiling Board
1. Introduction

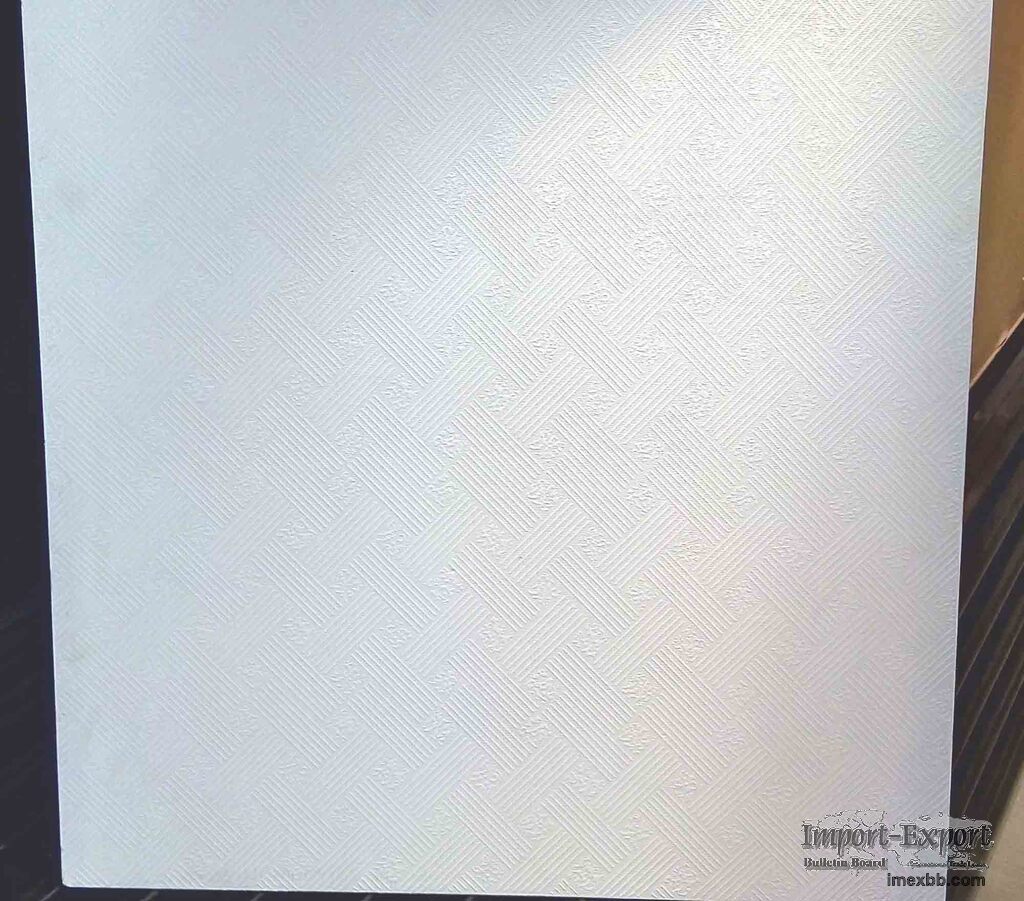

Kam Chung ceiling board is made of calcium silicate board in size 595*595mm or
603*603mm. It comes with a harmless coating on surface and selectable patterns.
Due to the advantages of calcium silicate board, it’s good against moisture
and heat and insects, thus an ideal replacement of gypsum board. Furthermore,
it’s easy to install and helps to reduce labor cost.
2. Application
Kam Chung ceiling board can be applied to office, apartment, villa, super
market, workshop, hospital, school etc. For one thing, it is used as false
ceiling to make a place look better. For another, it is applied to keep away
heat and save energy. Generally speaking, it’s a green and durable building
material.
3. Specifications
Size (mm) 595*595,
603*603,
Thickness (mm) 4 –10
Moisture content (%) ≤10
Density (g/cm3) 1.15-1.4
Wet Expansion Rate(%) 0.25
Thermal Conductivity (W/m•K） ≤0.30
Non- combustibility GB 8624-2006 Class A

4. Advantages
(1). Fireproof
(2). Insect-free
(3). No-denting
(4). Long lifespan
(5). Moisture proof
(6). Energy-saving
(7). Easy installation
(8). Environment-friendly
5. Installation Processes for False Ceiling
(1). Draw lines on ceiling according to construction plan, and install hanging
bars.
(2). Install main keels by following sequences.
(a) Use size UC50 or U38 steels as main keels and the distance between two
keels is 1200mm.
(b) Hangers must be installed on main keels and fasten by screws. If the main
keel is not long enough, there must be a overlap on the joint point with a
hanger clip.
(c) Remember to check the leveling all the time.
(d).It is required to use T-shape reinforced sub keel when installation is near
lamp and ventilation outlet.
(e) After installation of edge keel, check leveling of the whole system again.
Adjust the edge keels first, and then the sub keels in accordance with them. If
it is necessary you can adjust the main keel.
(f). Choose appropriate size and thickness of ceiling board as per design.
Normally we use 603*603*6mm. White gloves are recommended when installing the
boards to avoid spots and dust.

Minimum Order: 666 pieces
