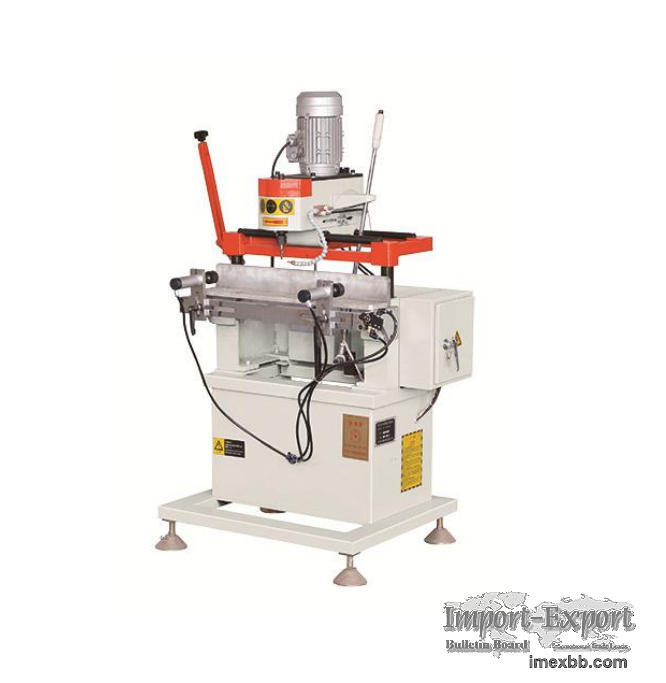

DX-2 Aluminum Door & Window Single-Head Copy Milling Machine

DX-2 Aluminum Door & Window Single-Head Copy Milling Machine

Product Overview:
The DX-2 is a specialized single-head copy milling machine designed for
processing a variety of hole grooves in aluminum and plastic profiles,
including drain grooves, pulley grooves, keyholes, and hardware mounting holes.
By replacing different contour plates, the machine can efficiently mill holes
of various shapes to meet diverse fabrication requirements. Featuring high-
speed cutting, pneumatic clamping, and reliable performance, the DX-2 is an
excellent choice for door and window manufacturers seeking productivity and
flexibility.

Key Features:

Suitable for milling drain grooves, pulley grooves, keyholes, and hardware
holes in aluminum and plastic profiles
Replaceable contour plates for processing different hole shapes
High-speed cutting with spindle speed up to 12,000 rpm
Pneumatic clamping for secure workpiece fixation and increased efficiency
Stable and reliable operation for consistent results
Technical Specifications

Item Specification
Model DX-2
Voltage 380V / 50Hz
Air Pressure 0.5–0.8 MPA
Power Rating 0.75 kW
Milling Cutter Diameter Φ5 mm, Φ8 mm
Spindle Speed 12,000 r/min
Copy-Routing Range 290 × 90 mm
Overall Dimensions 870 × 700 × 1500 mm
Applications:
Ideal for aluminum and plastic door and window manufacturers requiring
flexible, high-precision milling for various types of profile holes and
grooves.
