Easy Cleaning Heat Transfer Pillow Plate Laser Welding

PRODUCT DESCRIPTION
Customizable Laser Welding Pillow Plate Heat Exchanger easy clean

Brief introduction

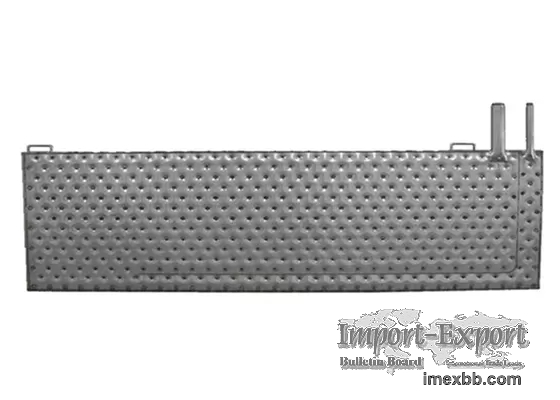

The Pillow Plate consists of two stainless steel sheets that are laser welded
together by welding a custom circle weld pattern. The outside perimeter of the
Pillow Plate is fully laser welded to create a pressure boundary. At the edges of
the Pillow Plate, a contour is welded to create a pressure-tight part.

The pillow plate is hydraulically inflated by using water through a hydrostatic
pump. Hydraulically inflating will guarantee for a safe inflation process. Other
inflation processes can be used depending on the application.

The inflation process pressurizes the two sheets which allows the material to
deform, a cavity will be created for use of a heat transfer medium. The Pillow
Plate can be used with either liquids, steam or refrigerants.

Design

A Pillow Plate design is always custom-made. At first we look at your desired
application. Do you need a plate with pillows on one side and a smooth surface on
the other (for example, applications for cooling milk tanks or heat or cool
applications in food or the pharmaceutical industry), then choose a single embossed
Pillow Plate. The flat product side of the single embossed heat exchanger are used
for sanitary product applications. Due to the precise welding process we can
guarantee that no heat tint will occur after welding, the material is welded with
the protective PVC foil in place.

Specification

Product Name Pillow plate heat exchanger
Material Stainless Steel
Color Nickel White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,DSS2205
Brade Hanpu
Length Customized

Features

1. Available in most materials, like stainless steel 304, 316L, 2205 and titanium
2. High operating pressures
3. High operating temperatures
4. No gaskets required
5. Corrosion resistant
6. Easily formed to fit the shape you need
7. Cutouts are easily provided
8. Thermally efficient types of heat transfer
9. Immersion heating and cooling.
10. Clamp-on heating, cooling, and temperature maintenance
