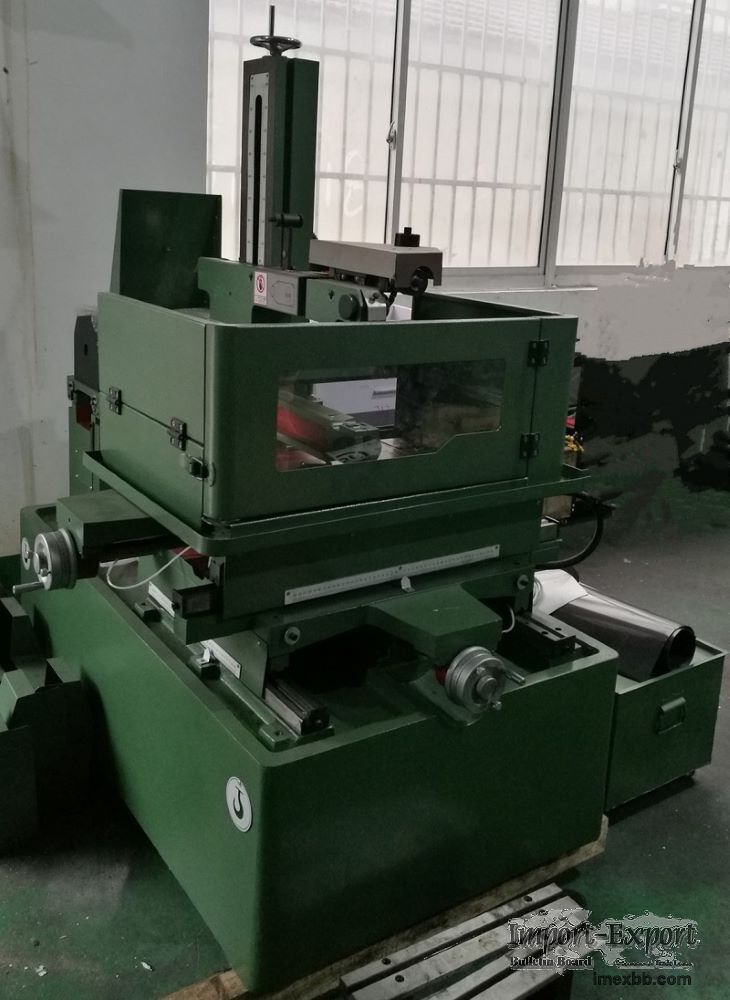

Economical CNC wire cutting EDM machines

I. The benefits you can get with our Economical CNC wire
cutting EDM machines:



1. You can save 30%-40% investing cost with our wire cut EDM machine,
comparing to our competitors in the market.

2. You can master the operation software in 1-2 hours. It is a user
friendly wire cutting software running on Windows XP computer.

3. You can be rest assured about its performance in the following years.




II. Advantages of our Economical CNC wire cutting EDM
machines:




1. Longer working life;

2. Lower failure;

3. Easier operation.









, III. Main parameters of the CNC wire cutting EDM machines:




Specification

, TE35

TE45

TE55

TE63

TE , 80

Travel

X/Y axis travel

mm

350*450

450*550
,
550*800

630*1000

800*1000

Table size

L*W

mm

360*608

49 , 0*790

720*1150

820*1200

980*1 , 980

Max cutting thickness

H

mm

400

400 ,

500

600

600

Taper angle

R

degree

±3°/100
& , lt; , br>Max cutting speed

*

mm2/min

140

Ro , ughness

Ra(Once cutting)

um

≤2.5

Ra(Multi- cutting)

um

≤1.5

Precision& , lt; , br>
*

mm

≤0.015

Weigh , t

*

kg

1100

1300

1 , 400

1500

1800

Motor

St , ep Motors on X/Y axis

Machine dimension

L*W*H

cm

145*140*17 , 0

160*160*170

180*180*180

205 , *200*180

275*240*200




IV. CONTROL SYSTEM Windows XP



1. The controller equipped the auto cut intelligent software, which
integrates the program and control and based on Windows XP. This new
designed auto cut software is the unique software for WEDM running on the
condition of windows XP.

Coordinate system: Absolute coordinate, incremental coordinate
(relative coordinate);



(1)Coordinate system: Absolute coordinate, incremental coordinate
(relative coordinate)

(2) Functions of coordinate transforming, zooming in and zooming out,
rotating and tracking display in real time

(3)Functions of interpolation of straight line and circular arc

(4)Function of taper processing: As above

(5)Function of processing different top and bottom abnormities parts

(6)Auto-handle for short circuit and wire-break

(7)Functions of memorizing: unexpected power off, it can continue the
processing automatically; auto-stop after processing

(8)Functions of auto edge-touching position and auto center finding

(9)Function of auto-adding transitional arc (Arbitrary angle)

(10) Functions of menu technology and auto-programming ward

(11)Functions of menu technology and auto-programming

(12)AUTOCAD can be used to program directly in the software.



2. Using the PCI slot controller card, LCD Monitor and the High-tech
Industrial computer. That greatly enhances the stability of control and
greatly reduces the computer the failure rate.



3. Embedded Control system can be connected with many design software
smoothly.



4. Variety of pulse power can be chosen, which is suited for a number of
processing conditions to improve the cutting ability of the high precision
parts.



5. With a large database storage capacity, user can choose the suitable
parameter according to deferent working conditions. Users can adjust
machining parameters to establish a database at any time according to their
own experience




V. CNC system configuration and technical performances.

(1) CNC Hardware configuration:
(A) Industrial Computer:P4 or above
(B)EMS memory: 1G
(C)Fixed Disk: 160G
(D)USB and Internet
(E) 15″liquid crystal display (LCD)
(F) RS232 and Keyboard and mouse



(2)CNC software and operation platform:
(A) CNC Auto-program and control function
(B) operation platform: Windows XP



(3)CNC technical function:
(A) 4 axis processing
(B)Function of processing different top and bottom abnormities
parts



(4)Running environment
(A) Temperature: 5-40 degree
(B) Relative humidity：40%～80%.

Minimum Order: 1 sets
