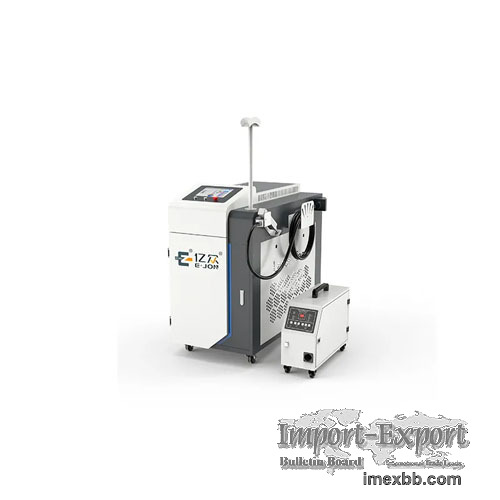

EJON Handheld Fiber Laser Welding Machine

Handheld fiber optic welding machine, equipped with the latest generation of
laser generators and our company'sdeveloped swinging welding head. This
machinefills the gap in handheld welding. It is suitable forwelding
aluminumalloy plates, stainless steel plates, iron plates, galvanized sheets,
and other metal materials, perfectly replacingtraditional processes such as TIG
welding and arc welding. The welding speed is 2 to 3 times faster than
traditionalwelding methods, helping you save at least two welders annually. No
deformation, no weld marks, and the weldingis strong. Laser welding consumes
less material and has a longer lifespan. The newly upgraded swinging
weldinghead compensates for the small laser spot size, expanding the tolerance
range of the workpiece and the weld width, achieving better weld formation
results, making it safer and more environmentally friendly.
Parameter Table
Laser power 1500watt 2000watt 3000watt
Laser wavelength 1070nm ± 5%
Working Voltage Single-phase 220V± 5%, 50Hz Three-phase 380V ± 5%, 50Hz
Laser source MAX
Power consumables 4kw 6kw 9kw
Fiber wire length Standard 10m
Welding system 3 in 1, single wire feeding 3 in 1, double wires feeding
Cleaning system 3 in 1,  width: 15cm/30cm 3 in 1, Width: 15cm/30cm
Cutting system 3 in 1 3 in 1

Click to Enlarge
