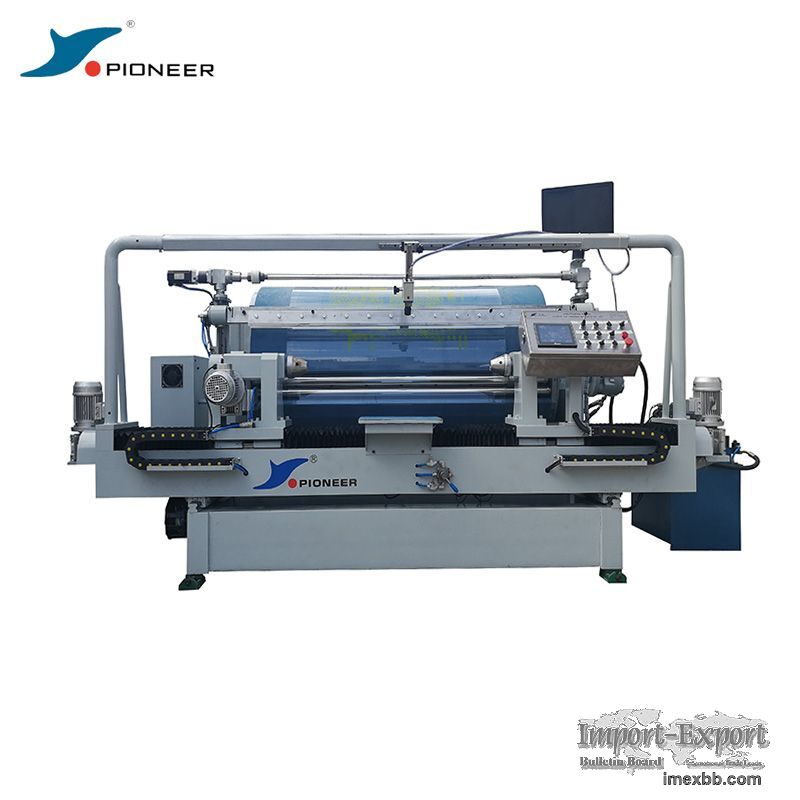

EKAQ Proofing Machine

EKAQ proofing machine is especially designed for checking the quality of a
newly made gravure cylinder before printing.
Rubber roller drives cylinder rotation to avoid the slip action. Load and
unload of gravure cylinder is controlled by Step switch. Auto self-control
system for blade angle and lock.Monitor display and single completely job
can be finished automatically while guarantee satisfactory printing and precise
registration.
Proofing Machine Main Technical Parameters
  EKAQ 1600 EKAQ 2000
Cylinder length (mm) 400-1600 400-2000
Cylinder diameter (mm) 120-400 120-400
Printing speed (m/min) 30-50 30-50
Printing press (mpa) 2-3 2-3
Drum diameter  (mm) 900 900
Rubber coating width (mm) 1600 2000
