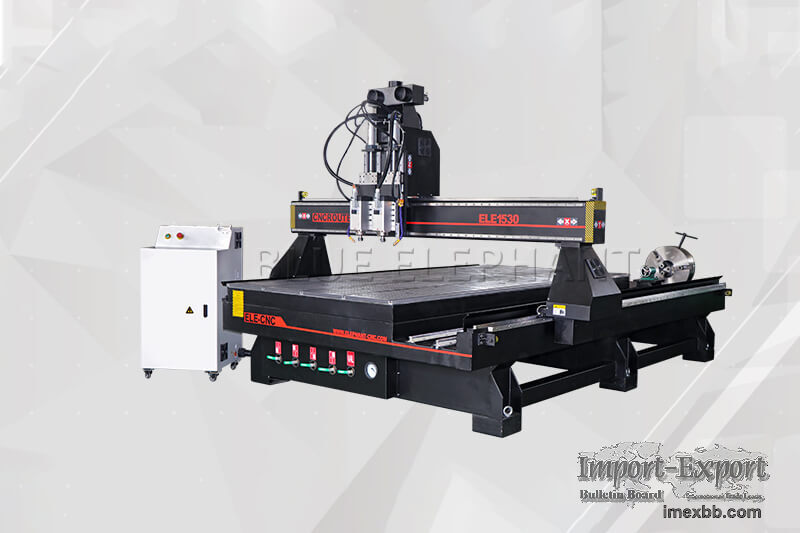

ELECNC-1530 4 Axis 3D Wood Sculpture Machine

This machine is called 4 axis CNC router for it is equipped with a rotary
device based on the ordinary 3 axis machine. It not only can process the common
objects but the cylindrical work pieces. With adopting the international
components like HSD ATC spindle, Yaskawa inverter, Becker Vacuum pump, Hiwin
linear, Syntec control system, the machine has a longer service life
Features:
The rotary device includes a fixed body and a shaft. As the fourth axis of the
4 Axis CNC router, it can replace the X axis or Y axis for column processing,
such as chair frames, stair frames, roman columns, columns, etc.
Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power
and also enables you to clamp the workpiece in place.
No matter of 3 axis CNC Router, or ATC CNC Router Machine, all the machines
were designed with top quality components for the machine, such as HSD ATC
spindle, Yaskawa Inverter, Becker Vacuum pump, Hiwin linear, Syntec control
system and so on, to keep the machine in the best condition even after working
for many years.
Parameter：
X,Y,Z Working Area 1500x3000x400mm
X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
X,Y,Z Repositioning Accuracy ±0.03mm
The 4th axis ±90°
Table Surface Vacuum&T-slot Table
Frame Welded Structure,heavy duty T-structure
X, Y Structure Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings
Z Structure Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings
Transmission X,Y rack & pinion drive,Z ball screw Transmission
Max. Rapid Travel Rate  45000mm/min
Max. Working Speed 30000m/min
Spindle Speed 18000rpm
 Spindle Power 4.5kw Italy HSD air cooling spindle
Working Voltage AC 380V/50/60Hz,3PH or AC 220V/50/60Hz
Motor Drive 1000w YASKWA servo motor servo driver from Japan
control System SYNTEC 4 axis control system
Software Compatibility Type3 , Artcam ,UGS ,UcancamV9
Running Environment Temperature 0 – 45 Centigrade
Inverter 5.5kw Delta inverter
Application
Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden
door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa
legs, headboards and so on.
Advertising Industry: Advertising identification, sigh making, Acrylic
engraving and cutting, crystal word making, blaster molding, and other
advertising materials derivatives making.
Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as
well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and
other non-metallic mold.

We produce nesting CNC router,nesting cnc machine,wood sculpture machine and 4
axis cnc router,contact us now.

Minimum Order: 1 sets
