Electric Motor Bearing

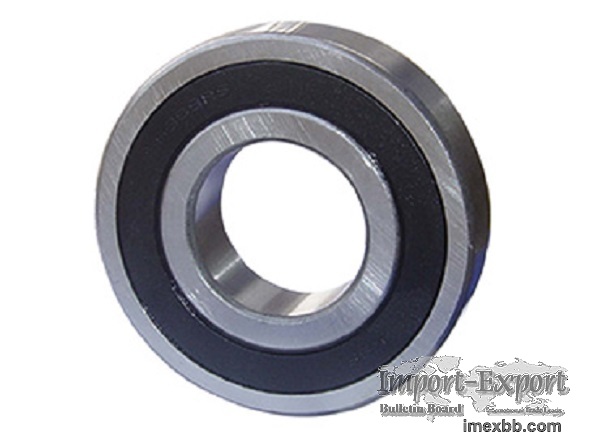

The 6308-2RS is a 40 mm ball bearing that can be used in many applications.
6308-2RS ball bearings have two contact rubber seals located on each side of
the ball bearing.
6308 2RS bearing rincipal dimension
Bearing No. 6308-Z/2Z/RZ/RS/2RS/2RZ
I.D. 40mm
O.D. 90mm
Width 23mm
Weight(Kg) 0.63mm
Bore Type Straight
Closure Type Two Contact Seals
Snap Ring Included Without Snap Ring
Internal Clearance C0
Maximum Operating Temperature 120℃
Dynamic Load Capacity 9149.72395743783 lb
Static Load Capacity 5395.41461863656 lb
Precision Rating ABEC 1
Bearing Material Steel
Feature Super finished raceways
Quiet operations, Low noise
ISO standard interchangeable dimensions
Electric Motor Quality (EMQ)
Contact seal(s) offer superior lubricant retention and bearing
protection from contaminants
long life
high temperature resistance of motor-bearing
We also supply other bearing no.:
The bearing numbers are as follow: 6204-2RS/ZV3  6205-2RS/ZV3  6206-2RS/ZV3
 6306-2RS/ZV3  6308-2RS/ZV3  6309-2RS/ZV3  6311-2RS/ZV3  6312-2RS/ZV3
 6313-2RS/ZV3   6314-2RS/ZV3  6406  6407  6408  6409  6412
6200 series and 6300 series used in motors with 3000 r/m, 6305 and 6400
series used in vibration motor.
