Electric Zumex Orange Juicer

Product Description
Industrial or Commercial Electric Zumex Orange Juicer Machine Full Automatic

Konmax Orange Juicer Description:

Material Stainless steel Delivery time 20FT: 10days; 40HQ: 15days
Width 300MM Length 400MM
Height 770MM Model XC-2000E-1
orange size 40--90mm Output 22-25 oranges/mins
Package size 410*310*780MM Certificate CE approval available
Electrics Standard 110V-220V,50-60HZ Power 120W
G.W 51KG N.W 45KG
40' HQ loading 290PCS FOB Shanghai USD
20' FT loading 120PCS Warranty 1 Year


Konmax Orange Juicer Application:

Commercial orange juicer can be used in wide range like bar,restaurant,drink
shop , home ,supermarket,gymnasium,entertainment ,hospital etc



Konmax Orange Juicer Operation Steps:

1) Place the machine on the table after it is taken out of the box; Make sure
that no parts is missing on the box.
2) Connect power plug to a power/socket, and turn on the power switch, run the
machine without load.
This is to check that machine run normally and does not make any strange noise.
3) Then, check whether the waste bins and tray are place in the correct
positions, Then turn off the machine.
4) Put the cup on the tray to get juice.
5) Put pre-washed oranges into the top basket before squeezing.
6) Turn on the switch, and let the machine run without load for a while. Then
put oranges into feed rail,
and oranges will roll into concave roller, and cut into two half by knife
assembly, and squeezed by convexroller.
Juice flowing down the cup.
7) To stop squeezing, turn off the power switch.

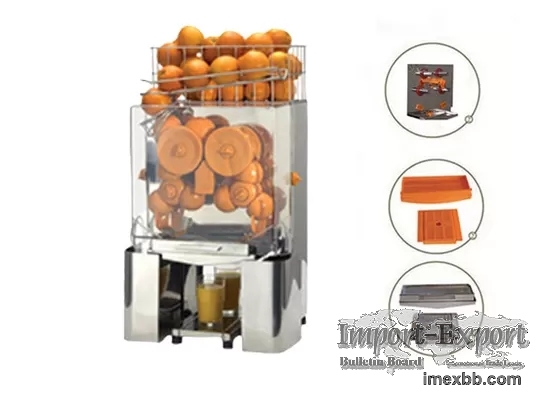

Konmax Orange Juicer Detailed Photo:
Electric Zumex Orange Juicer 0

Squeezing part

Concave convex extrusion, higher yield about 60%, more hygienic



Electric Zumex Orange Juicer 1



Stainless steel fruit basket can hold 10 kg oranges



Electric Zumex Orange Juicer 2



water drip tray makes it easy to clean and no juice flow outside
