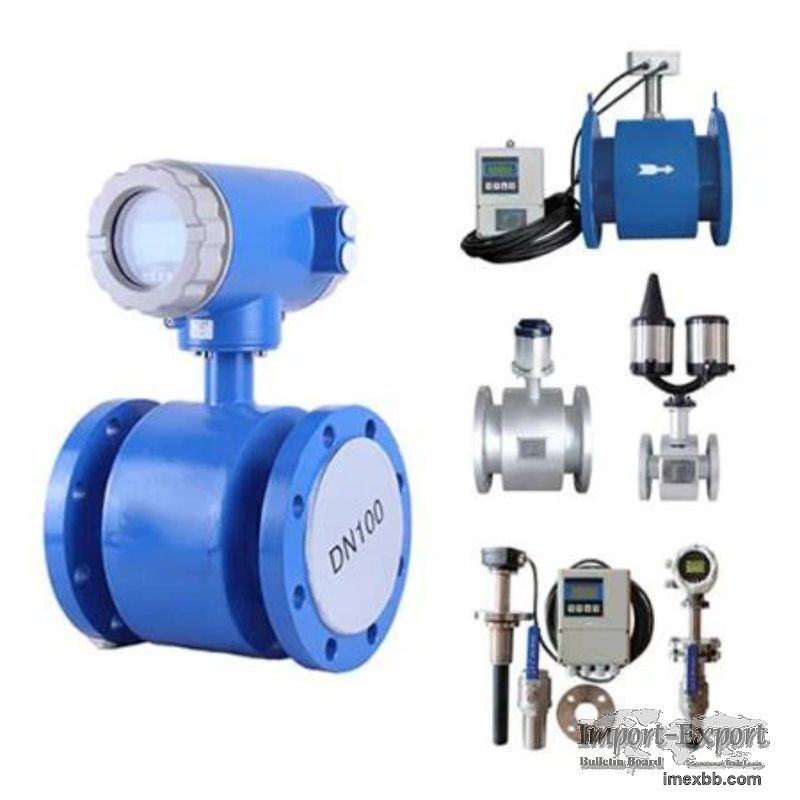

Electromagnetic Flow Meter

Electromagnetic flow meter, a type of industrial instrumentation, is one of
the oldest and most widely used industrial instruments. Which is reliable and
economical water flow measurement technology. Compact type, split type, split
waterproof type, battery supply type, plug-in type, various styles available.
Advantage
No moving parts or flow obstructions, virtually eliminating maintenance and
pressure drop.
Accuracy readings up to +0.50% of measured value.
Wide pressure drop ratio provides a wide flow range for a variety of
applications.
Specifications
Parameter Description
Accuracy ±0.5%
Damping Time 0.2~100s select able
Analog Output Bi-directional, isolated 0~10mA/4~20mA.
Protection Class For electronic box IP65 (outdoor) or IP 67 (optional)
Lining Material Rubber, PTFE, Polyurethane, PFA
Electrode Type General type, scraper type or replaceable type
Electrode Material 316L SS, Hastelloy B, Hastelloy C, Titanium, Tantalum
Sensor Material Measuring tube Stainless steel
Medium Temperature Integral type -10°C~+80°C (14°F~176°F) Remote type
-10°C~+150°C (14°F~302°F)
