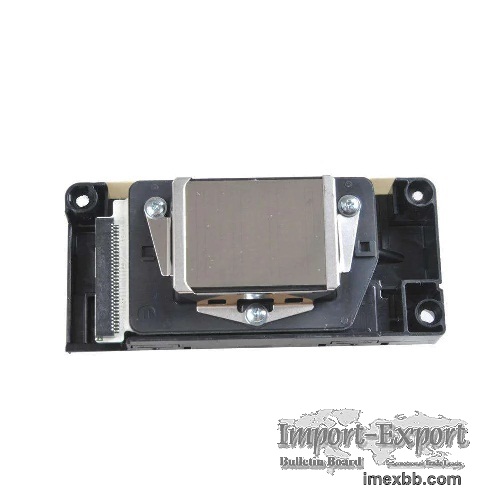

Epson DX5 Mimaki JV33/JV5 with Memory Board-M007947

PRICE $ 1850

Description
This complete original Mimaki JV33/JV5 printhead is suitable for the Mimaki
solvent printer series. The Mimaki JV33/JV5 printhead has a native
resolution of 1440 dpi, eight nozzle lines (corresponding with eight
independent ink channels), and 180 nozzles per line.


The Mimaki JV33/JV5 printhead is either used in 4-colors or 6-colors and
has a minimum, variable droplet size of 1.5 picolitres (max. droplet size
is 21 picolitre). The typical firing frequency for this printhead is 8 kHz.

It is a new generation print head that allows fast speed, high-resolution
printing with eco-solvent and mild solvent inks. The original and complete
Mimaki JV33/JV5 printhead is delivered in a sealed Mimaki package with the
Head ID and the Head Memory Board. The Mimaki part number for this
printhead is M007947.

Product Specifications

Technology: Micro-Piezo
Native resolution: 1440 dpi
Min. Droplet Size: 1.5 picolitre
Max. Droplet Size: 21 picolitre
Tot. Number of Nozzles: 1440 (8 lines x 180 nozzles)
Firing Frequency: 8 kHz
Ink Compatibility: eco-solvent and mild solvent
Compatible Printers:

Mimaki
CJV30-100
CJV30-100B , S
CJV30-130
CJV30-130BS
CJV30-160
CJV3 , 0-160BS
CJV30-60
CJV30-60BS
JV33-130
J , V33-130BS
JV33-160
JV33-160BS
JV33-260
JV33-260BS
JV5-130S
JV5-160S
JV5-260S
JV5-320DS
JV5-320S
TPC-1000
TS3-1600
, TS5-1600AMF

Minimum Order: 1 pieces
