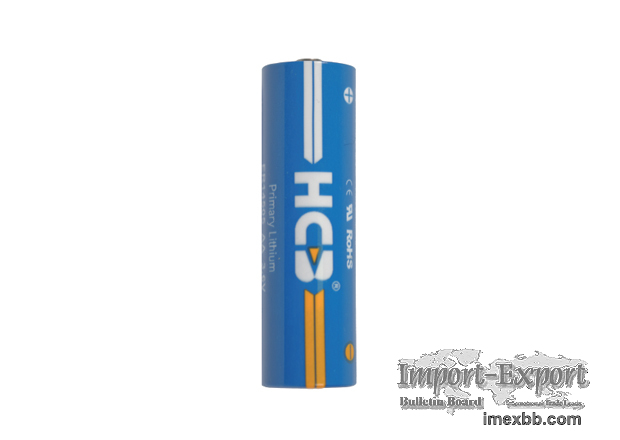

ER14505 Li-SOCl2 Cylindrical Battery

Primary Lithium Battery ER14505 3.6 V

2500 mAh capacity

No Passivation Effect Wide Temperature Range

3.6V Lithium-thionyl chloride [Li-SOCl2] AA-size bobbin cell ER14250

Specification of er14505h 3.6 v lithium battery
Battery Characteristic of ER14505 Li-SOCl2 Cylindrical Battery


High Voltage

As a hcb battery co ltd, we provide the nominal voltage up to 3.6V, the
operating voltage varies with the load, normally between 3.3V and 3.6V

High Energy Density

The specific energy density of each battery is 450Wh/kg

Wide Operating Temperature Range

Battery working temperature range from -55℃ to +85℃

Stable Operating Voltage

Stable operating voltage, more than 90% of the capacity could be output with a
fixed voltage

Long Shelf Life

The battery self-discharge less than 2% per year at room temperature

Hermetic welding sealing to reduce the leakage for extending the shelf life to
more than 10 years


2. Main Applications of ER14505 Li-SOCl2 Cylindrical Battery

Security & alarms

Smoke detectors, security alarms, seismometers, locking systems, monitoring
systems, etc.

Military & defense

Ground force (individual soldier system, infantry fighting vehicles, robot
soldier), navy (submarine, underwater robot), air force (fighters, unmanned
surveillance drones), aerospace (satellites, shuttles), etc.

Oil & gas

Well pressure meters in high temperature, float meter, logging while drilling
(LWD), measure while drilling (MWD), etc.

Minimum Order: 100 pieces
