ETIPD Leeb Hardness Testing

Mikrometry Instrument Limited is a measuring instruments manufacturing
company and manufacturer of digital height gauge, force and torque
measurement products, portable hardness tester and coating thickness gauge.
Since our founding in 2007, our products have proven themselves in numerous
applications at companies in the automotive, machinery, electric product,
film, medical device, textile, pharmaceutical, cosmetic, packaging, food,
and many other industries. We also offer optimized solutions for special
requirements.

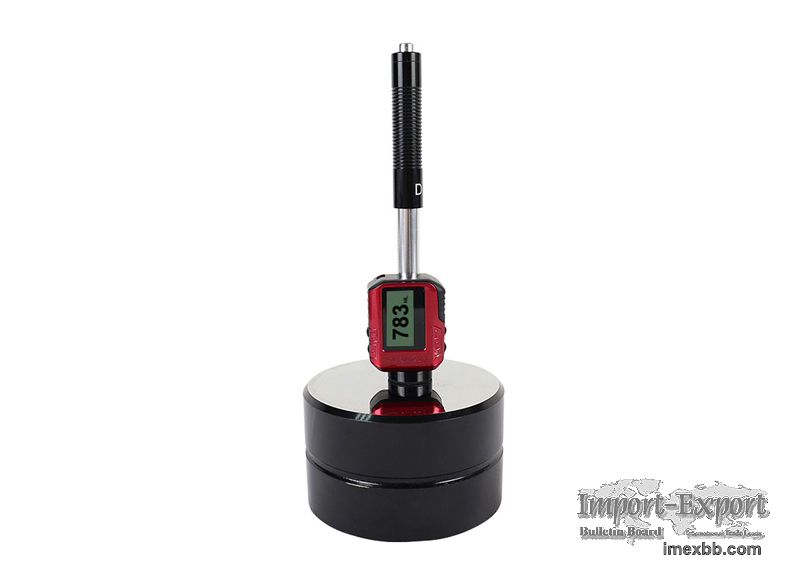

Mikrometry hardness tester ETIPD is a kind of portable measuring tool; the
leeb tester can be quick, nondestructive, and high accuracy when measuring
common metal materials hardness. It can be used in the laboratory, as well
as the on-site engineering field. The leeb hardness tester is indispensable
for material nondestructive hardness testing. Our leeb hardness tester price
is very reasonable and affordable as well.

Feature Of ETIPD Leeb Hardness Testing
Self-contained (Impact Device D integrated): no cables.
Integrated impact direction sensor.
Highly accurate (±4HL) in any impact direction (360°) – automatically.
Integrated display of results for all common hardness scales.
Large, high contrast LCD for optimum viewing in all conditions.
Easy calibration.
Full USB communication with PC, software included free of charge.
The internal storage of data with day and time.
Battery: Rechargeable Li-ion, charges through the USB port.
Intelligent sleep mode.
Standards and Guidelines applied: DIN 50156 (2007), DGZfP Guideline MC 1
(2008), VDI / VDE Guideline 2616 Paper 1 (2002), ISO 18625 (2003), ASTM A956
(2006), GB/T 17394 (1998), JB/T 9378 (2001), JJG 747 (1999), CNAL T0299
(2008), JIS B7731 (2000).
Printer: Wireless (Bluetooth) mini printer. 4

Specification Of ETIPD Leeb Hardness Testing
Accurate ±4 HLD
Units HRC、HRB、HB、HV、HSD
Display 128*64 dot matrix LCD(1 inch) with backlight
Memory 500 data
Testing Direction Automatic identification, no wiring required
Data Transmission USB
Power Built-in 110 mAh Li-ion Battery
Operating Environment Temperature：-10~+40℃
Humidity：20%~85%
, Storage Environment Temperature：-30~+80℃
Humidity：5%~95%
D , imension 147* 35*22 mm
Weight 100g
Accessories Hardness Tester, Test Block, Mini printer, Charger, USB
Cable, Printer Charger Cable, Litter Support Ring, Cleaning Brush, Suitcase
Standard GB/T17394、GB/T1172、ASTM A956 & DIN 50156
