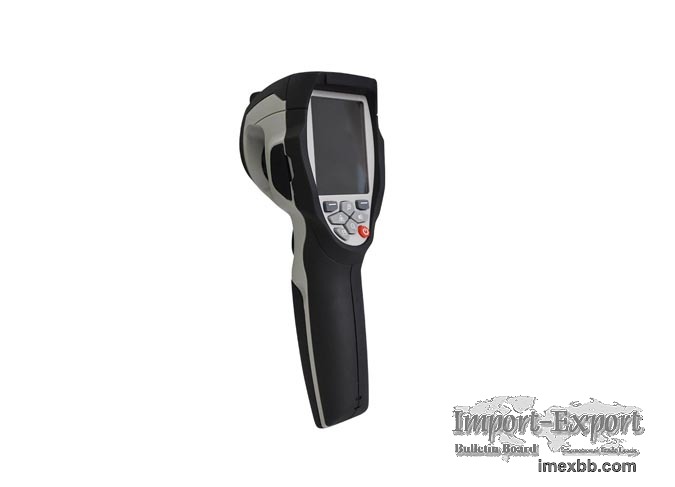

Explosion-proof Infrared Thermal Imager

Explosion proof thermal camera, mode YRH650, explosion-proof mark Ex ib I Mb,
can be used in dangerous environments such as coal mines and underground mines
for predictive maintenance, equipment troubleshooting and confirmation of
normal operation of equipment. The LCD screen can display infrared image and
visible light image, and the image can be saved in SD card. YRH650 connects the
SD card to the computer through the card reader, which can move the pictures on
the SD card to the computer, and has the function of recording and playing
audio.

Parameters of Explosion-proof Infrared Thermal Imager

Explosion-proof Type Mine intrinsically safe
Explosion-proof  Mark Ex ib I Mb
Size 224×77×96mm
Weight ＜500g
Infrared Lens Field of view 19°x25°, focal length 9mm
Minimum Focus Distance 0.2m
Spatial Resolution (IFOV) 3.33mrad
Infrared Resolution 160×120 pixels
LCD Display Resolution 2.8-inch color TFT, 240×320 pixels
Sensor Type/Operating Wavelength Uncooled Focal Plane Detector9
(UFPA)/8-14um
Thermal Sensitivity ＜0.06°C/60mK
Image Frame Rate 50Hz
Focus Method Manual
Digital Zoom 1-32 times digital continuous zoom, step 0.1
Image Display Mode Infrared image, visible-light image, picture-in-picture
function, AUF automatic fusion
Picture in Picture Fusion of visible light image and infrared image
Palette iron oxide red, rainbow, gray, white gray
Total Measurement Range -20℃~650℃
Measurement Accuracy ±2°C (±3.6°F) or ±2% of the reading, whichever is
greater
Point Analysis Center point + automatic marking of the highest and lowest
temperature in the area
Emissivity Correction Between 0.01 and 1, variable
Measurement Correction Emissivity reflected temperature
language Selection English, Chinese, French, German, Spanish
Body Storage/Memory Card Storage 100M bytes, 80 images or 1-minute video
recording/8GB memory card, expandable up to 32GB.
Video Storage Format Standard MPEG-4 format, 1280×960@30fps, video > 60
minutes on the memory card
Image Storage Format Standard JPEG format, resolution 1280×960, pictures
with measurement data, can store more than 1000 pictures on the memory card
Built-in Visible Light Camera 5 million pixels
Interface & Video Out USB interface, audio output interface, high-definition
video output interface
USB Interface Transfer data between device and computer
Battery Rechargeable lithium battery, working time up to 4 hours or more
Battery Capacity 1400mAh
Protection Class IP54

Features of Explosion-proof Infrared Thermal Imager

01
Infrared Resolution Up to 160×120 Pixels
LCD screen can display infrared and visible images, quick troubleshooting
equipment.

02
Measuring Accuracy ±2℃
Measuring range -20℃ to 650℃, can accurately locate hot spots.

03
8GB Memory Card
Images can be saved in sd card. By connecting the sd card to the computer
through the card reader, the picture of the sd card vendor can be moved to the
computer.

04
With Audio Video and Play Function
Can store more than 60 minutes of video.

Xuxin provides intrinsically safe mobile phone, intrinsically safe thermal
imaging camera, intrinsically safe thermal camera, explosion proof devices,
etc. Want to know more, please contact us.

Minimum Order: 1 sets
