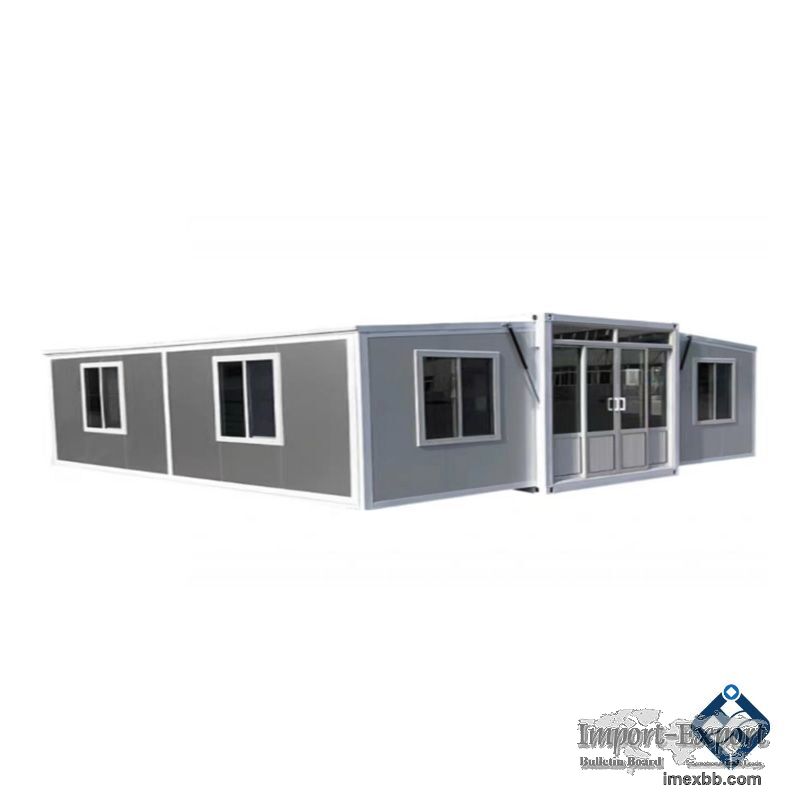

Extended Container House

Extended Container House
product description
Jiaqiang Extended Container House is a welded structure with galvanized steel
structure, which can be prefabbed in the factory and assembled on site;
The construction cycle is shortened by 80% compared to traditional buildings,
the construction labor is saved by 70%, the coagulation loss is reduced by 98%,
the construction water is reduced by 70%, and the comprehensive energy saving
exceeds 50%;
Jiaqiang box house is movable and reusable. The room unit structure is a
standard component welded with special shaped steel, and the boxes are
connected by bolts.
Roof Roof Panel galvanized color-coated roll, 360Degree of bite, white
gray, t=0.4mm
Thermal Insulation glass wool, flame retardant A-class, test
weight ≥14kg/m³, t=75mm
Ceiling Panel galvanized color-coated roll-forming, 193 sealed
shadowless ceiling, white gray, t=0.4mm
Ground Decorative Surface white and gray multi-layer composite PVC floor,
flame retardant B₁-class, t=1.6mm
Substrate+Waterproof Film cement board, density ≥1.2g/m³, flame
retardant A-class, t=18mm
Wall Color Coated Plate 1150S, double-sided 0.32mm, with orange peel
texture on the outside and flat inside, Jinghua galvanized aluminum color-
coated plate
Thermal Insulation flame retardant glass wool, test weight
≥55kg/m³, flame retardant A-class, t=50mm
Door Specification W925mm*H1970mm
Material steel door
