EXTRUDER SPARE PARTS MANUFACTURER

WITH REGARD TO PRODUCTION SPECIFICATIONS, LESUN NOT ONLY OFFERS STANDARD TWIN
SCREW EXTRUDER PARTS MADE BY GENERAL EXTRUDER SCREW AND BARREL MANUFACTURER,
BUT ALSO PROVIDES SPECIAL-PURPOSE EXTRUDER PARTS DESIGN SUCH AS SREW DESIGN AND
MANUFACTURING SERVICE ACCORDING TO YOUR REQUIREMENTS. MEANWHILE, WE ALSO
PROVIDE SURVEYING AND MAPPING BUSINESS AS WELL AS PROCESSING BUSINESS FOR
ACCESSORIES MADE BY MAJOR EXTRUDING MACHINE COMPANIES.

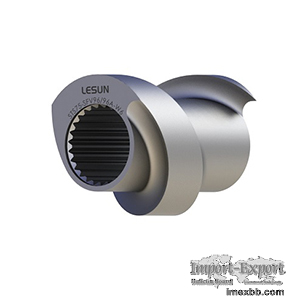

Conveying Screw Element
The main function of the conveying element is to help the material forward in
the cylinder, and it will determine the conveying speed according to the size
of the lead. The larger the lead, the faster the conveying speed. Conversely,
the smaller the lead, the slower the conveying speed. Conveying elements can be
divided into kneading elements and non-kneading elements. kneading and non-
kneading can be selected according to the shape of the material.


Kneading Screw Elements
The main function of the kneading screw element is mixing, which is used for
the distribution and dispersion of the materials. The strength and weakness of
the dispersion and distribution effect are determined according to the
thickness of each disk. Meantime, the larger the angle, the stronger the shear.
Conversely, the smaller the angle, the weak the shear.


Mixing Screw Element
The mixing screw element included TME, SME, ZME, CME, SFT, eccentric elements,
multi-head elements, extruder feed screw and most teeth elements serve to
enhance dispersion.


Screw Barrel
The screw and barrel manufacturer, Lexun, provides different screw and barrel
types, including open barrel, closed barrel, open side barrel and liquid barrel
for your needs.


Screw Shaft
The shaft spline type is divided into single-key , rectangular spline and
involute spline.
Materials can be selected from China, Germany and Japan made.
The standards for splines has Chinese standard, German DIN5480 (or DIN5482) and
Japanese standard.
Currently the maximum length of the shaft we can supplied up to 9 meters.

Minimum Order: 2 pieces

Click to Enlarge
