Face Recognition Terminal

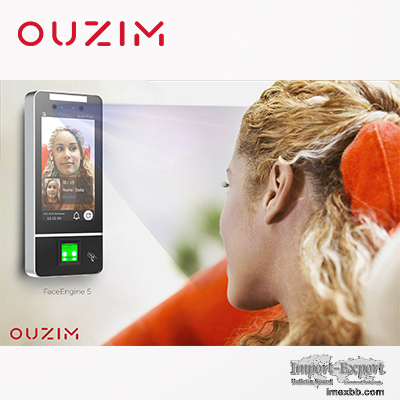

Ouzim FaceEngine 5 Smart Dynamic Living Face Recognition Terminal for
Security Access Control Entrance Solution
Model: FaceEngine 5
Brand: Ouzim
Support multiple authentication Multifunction
FaceEngine 5 offers a wide range of authentication multifunction: face,
fingerprint, passcode and cards, mask identification, temperature
detection.3,000 fingerprints +3,000 cards +3,000 passcode + 200,000 records

1. 10,000 face +10,000 fingerprints +10,000 cards +10,000 passcode +
200,000 records + 50,000 capture images
2. Built-in card reading module, support card 13.56 MHz (Standard), ID
card 125KHZ (optional)
3. Dynamic face recognition, Support remote user registered through
profile photo uploads.
4. Semiconductor fingerprint sensor, improve the performance of the
fingerprint identification.

Ouzim FaceEngine 5 Smart Dynamic Living Face Recognition Access Control
Support High-Performance Dynamic Face Recognition Access Control
1. 1.2 GHz Dual Core CPU, recognition distance up to 2M with matching
speed < 0.3s.
2. Contactless dynamic face recognition and face recognition of users
wearing masks,
3. Alarm and limits access of users with high temperature and users
not wearing masks.
4. Built-in IR and visual cameras, wide dynamic strong light
suppression with 99.9% authentication accuracy.
5. Anti-spoofing performance, by deep learning-based Al algorithm
applied for binocular Living body detection, effective prevention of photos
and video spoofing and to produce the best live face recognition
performance.

Ouzim FaceEngine 5 Smart Dynamic Living Face Recognition Access Control
Support Well-developed Attendance
Management System
1. With all access control professional functions, detailed excel
report can be directly exported through U disk.
2. Support touch-screen offline operation, PC-less, easy to use.
3. Support remote user registered through profile photo uploads.
4. Support multiple communication modes: U disk, TCP/IP, TCP/IP, WIFI
(optional).
Ouzim FaceEngine 5 Smart Dynamic Living Face Recognition Access Control
Specifications Sheet:
Identification mode Face / Mask, Fingerprint, Card, Passcode
Face / Mask, Fingerprint, Card, Passcode,
Temperature Measurement
Face Recognition Distance 0.5-2M
Face Recognition Speed < 0.3s
RFID Technology 13.56 MHz card (Standard), 125KHz ID card (optional)
Temperature Detection Distance — 0.5-1M
Temperature Range — 30℃-50℃
Temperature Accuracy — ±≤ 0.2℃
Temper Alarm — Support
Max. Users Face: 10,000 , Fingerprint: 10,000 Cards:10,000 , Password:
10,000
Max. Text Log Face 200,000
Max. Image Log 50,000
Group, Time Zone 24 Timezone, Anti-passback
Multiple Language English, other languages can be selected
Operation System LINUX
CPU Dual Core 1.2GHz
Storage Capacity 16G
Camera Dual Camera( VIS & NIR )
Display 5" TFT Capacitive touch Screen Resolution 720*1280
Dimensions(W x H x D) 86mm x 201mm x22mm
Gross Weight 800g 900g
Working Temperature -20°C~60°C (4°F~160°F)
Anti-static Electricity Touch: ≥6KV, Space: ≥8KV
Humidity 0% to 90%
Power Input DC12V/2A (DC9V-14V)
TCP/IP Support
RS485 Optional
USB Optional
Wi-Fi Optional
Relay 2 Relay Out
Wiegand One Group of Wiegand Input / Wiegand Output (26/34)

Minimum Order: 1 sets
