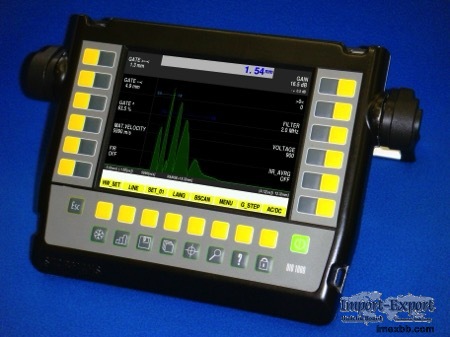

Faw Detectors DIO-1000 SFE

New generation of electronic components, fast micro-processors and
our long-term experience in manufacturing of ultrasonic instruments
enabled us to develop really advanced revolutionary ultrasonic flaw
detector Defectobook® DIO1000 with the best parameters and functions.
MAIN FEATURES
Well balanced between ergonomics and functionality: easy solutions for
your daily applications in workshop, laboratory and outdoors. Due to
its adjustable handle, the instrument sits stable on any surface you
encounter, even on round parts.
Large bright color LCD screen 1024 x 768 pixels, excellent visibility
on the direct sunlight.
Optimum performance and extended connectivity.
Lightweight 1,28 kg / 3,04 lbs and just 34 mm thin.
The DIO 1000 combines the powerful advantages of digital design with
the detailed dynamic echo information to bring back the “analog look
and performance”, using sampling rate of 200 MHz.
Direct access to 12 main functions.
Burst pulser selectable and tunable for optimum probe matching to
satisfy a wide range of tough-to-penetrate applications.
EMAT for non-contact testing.
Trigonometric flaw locatio n functi on wi th curvature correction
automatically calculate s depth, surface distance and sound path to
flaw along with the leg of the inspection when using angle beam probes.
All TOF measurements can be displayed in mm, inches or μs.
Standard DAC, JIS-DAC, AVG, API, Automatic Thicknessmeter, Auto Gain,
Auto Freeze, Automatic Calibration, Curved Surface Measurement.
Weld rating calculation simplifies the rating of indications in welds
according to AWS Specification D1.1.
B-scan imaging – thickness mode or RGB palette.
ENVIRONMENTAL TESTS
Tests for Damp heat / Humidity as per norms EN 600-2-78;02; EN 60068-1
Vibration tests as per norm EN 60068-2-6 ed 2:08
Shock tests as per norm EN 60068-2-29:1996+Z1:10

Minimum Order: 1 sets
