FBI Certified Single Finger Reader

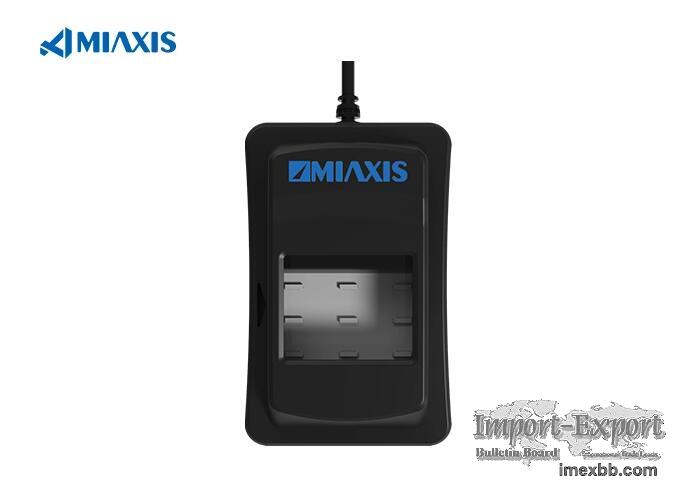

Miaxis SM-93

Biometric Finger Machine Overview:
Miaxis SM-93 is an FBI-PIV&Mobile ID FAP30 certified optical Fingerprint
Authentication Scanner. It's a compact & portable fingerprint collection device
for easy integration with new or existing applications. Powered by USB 2.0 and
supports Windows, Linux and Android operating systems. Ideal for secure
biometric authentication and national e-ID programs.

Biometric Finger Machine Features:
Certificates

FBI PIV and FBI Mobile ID FAP30 certificates

Biometric standard: ISO 19794, ANSI 381, ANSI-378, WSQ, JPEG2000, MINEX III
compliance

Live Fingerprint Detection

Machine-learning-based live finger detection technology to differentiate fake
fingers

Auto-reject fake materials including silicon, paper, rubber and more

Easy Integration

SDKs available for Android, MS Windows and Linux compatible

Plug&play USB powered device

Advanced Algorithm

Template options: MIAXIS, ISO 19794-2 & ANSI 378


Miaxis proprietary Justouch® fingerprint extractor & matcher passed NIST MINEX
III compliance

Value-added customised APIs for software integration

Dustproof and Waterproof

IP65 dustproof and waterproof

Biometric Finger Machine Specification:
Sensor Type Optical Sensor Dimensions 72×46.0×25.5mm(L×W×H)
Image Resolution 500dpi Operating Temperature -10℃ to +50℃
Image Size 400×500 pixels Operating Humidity 20%RH - 90% RH
Image Standard FBI PIV&FAP30 Supply Voltage DC 5V±5%(USB powered)
Live Finger Detection Yes Supply Current ≤200mA(USB powered)
≤50mA(USB powered at sleep mode)
Sensing Area 20.32×25.4mm Ingress Protection IP65 (Sensor Surface)
Image Gray Scale 8bit, 256 levels Support OS Linux Kernel
4.15 or higher;
Windows 7 or higher;
Android 4.1 or higher
Image Format WSQ, JPEG2000, RAW, BMP, ISO 1974-4, ANSI 381 ESD Immunity
±8kV contact discharge
±15kV air discharge(Sensor Surface)

If you want to know more about biometric finger machine price, biometric sensor
price, finger reader price, please visit our website.

As a biometric machine company, we will do our best to meet all the needs of
customers.

Minimum Order: 1 pieces
