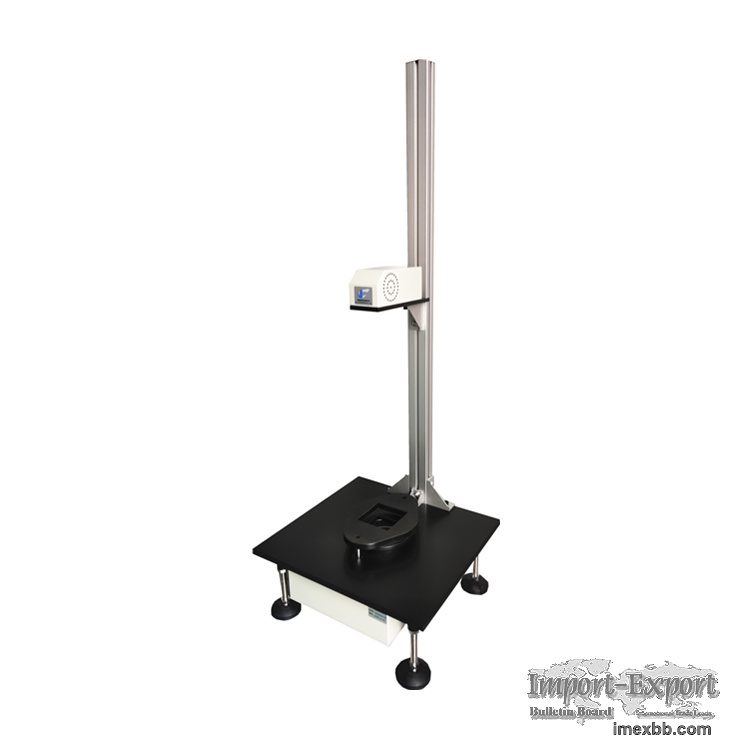

FBT-01 Falling Ball Impact Tester

Background
Impact resistance plays an important role in the performance of material
subjected to regular shocking load or impact load. As this kind of load may
cause rupture, cracking or deformation. There are various test procedures to
evaluate the impact resistance of a material, such as dart impact, ball impact,
pendulum impact, izod, charpy, tensile, etc.

Application
Falling ball impact tester measures the resistance performance of plates,
sheets, and composites, films foils, paper etc. with less than 2mm thickness.
By impact test, the material ability to resist external destruction can be
indicated. User observes the destruction status of the test specimen after it
has been hit by a falling weight that fell from a given testing height. Test
Method A steel ball of known mass and diameter is released from a predetermined
height, creating a controlled impact force on the test specimen (film or
plastic sheet).
The impact energy and the resulting damage or deformation are measured and
analyzed to assess the material's impact resistance.

Factors Influence Result
1. Drop Height: The height from which the steel ball is dropped is a critical
parameter that can be adjusted to simulate different impact scenarios.
2. Ball Size and Mass: The size and mass of the steel ball are selected based
on the specific testing standards or application requirements.

Minimum Order: 1 sets
