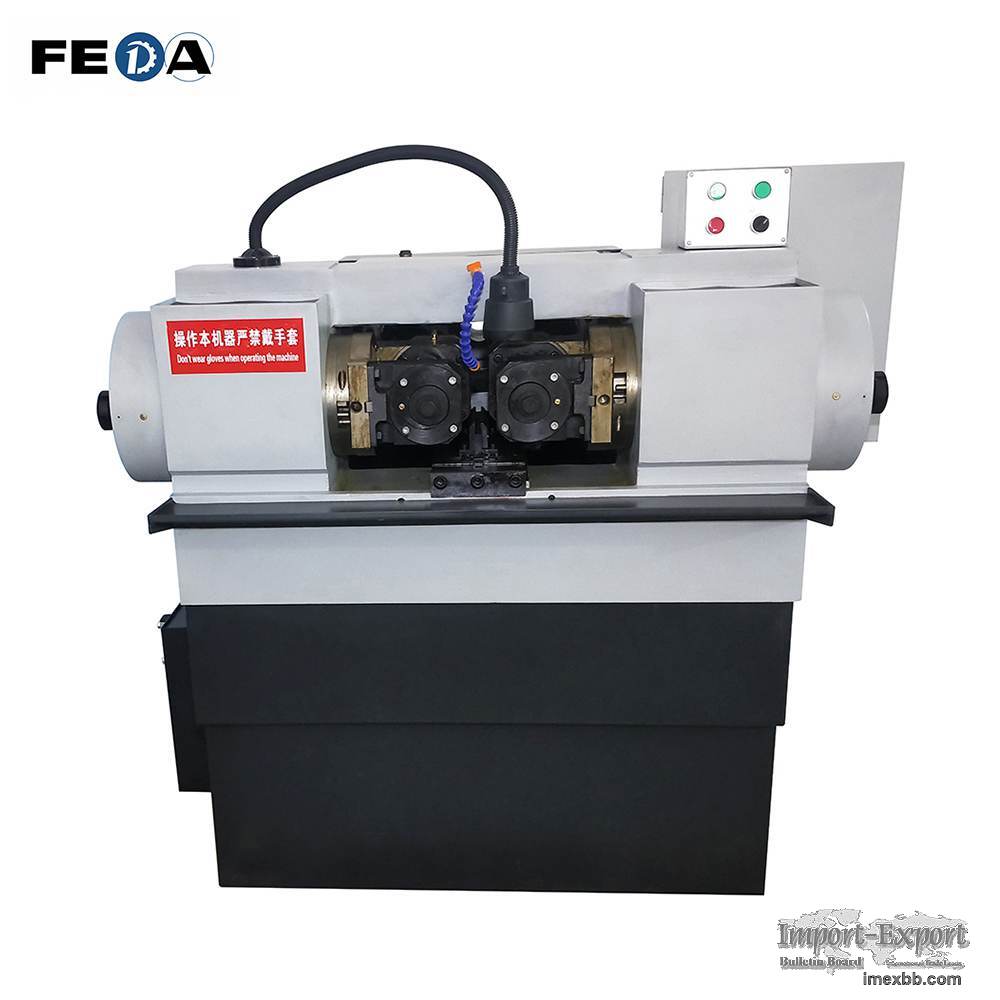

FD-12T pipe connector threading machine flat thread rolling machine

1. Automatic feeding with adjustable brackets
2. Speed is adjustable for different products
3. 54mm hole diameter for SKD11/DC53 thread rolling dies
4. Max. Rolling pressure is about 120KN
5. It is easy to operate and maintain the machine
6. CE, ISO9001-2008
Specification
Working diameter 2-20/mm
Thread pitch 0.4-2.5P
Thread length In feed & Thru feed
Spindle speed 42/53/68/87rpm
Outside diameter of rolling die 120mm-175mm
Inside diameter of rolling die(keyway) 54mm
Thickness of rolling die 80mm
Min.center distance between die spindles 120mm
Max.center distance between die spindles 196mm
Machine motor / Hydraulic motor 4.2KW
Max.rolling pressure 12T
Supply voltage 380V 3P 50Hz
Weight(reference) 1500(KG)
Package Dimension(L*W*H) 1325*1300*1400 mm
Dimension(L*W*H) 1176*1160*1200 mm

Minimum Order: 1 sets
