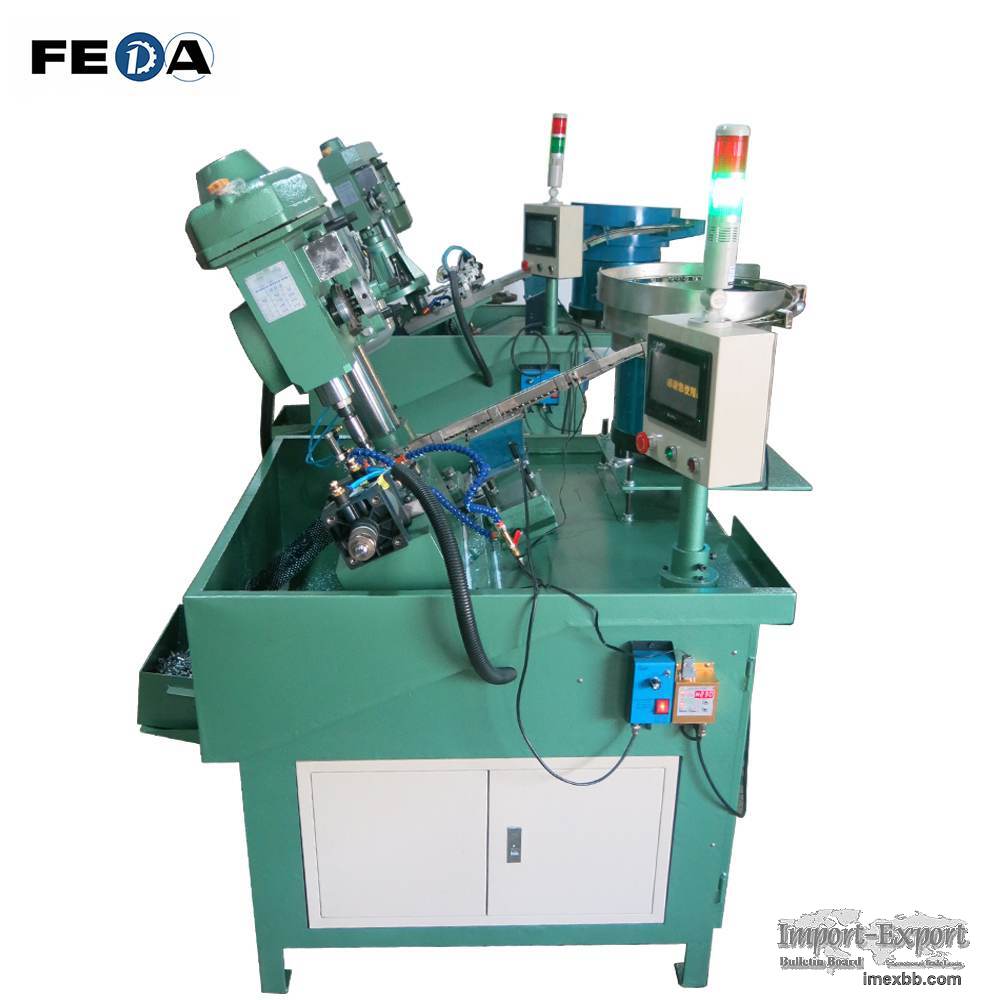

FD-4508 automatic tapping machine tapping machine automatic feeder tapping

1. Forming & cutting thread can be realized on only one machine
2. Adopt vibration bowl as automatic feeding devices
3. High speed, to save cost of time and workers
4. High precision, stability and durability
5. Easy to operate and maintain the machine
Specification
Max. spindle stroke 45mm
Spin warp 330mm
Thread diameter 2-8mm
Head movement distance 260mm
Distance between spindle and table 350mm
Table size 225*230mm
Base area 415*300mm
Capacity 10-15pcs/min
Dimension(L*W*H) 1200*1000*1500mm
Weight 450 KG
Motor 380V, 4P, 750W
Number of spindle swing 50HZ-1340, 760, 420
60HZ-1600, 900, 500

Minimum Order: 1 sets

Click to Enlarge
