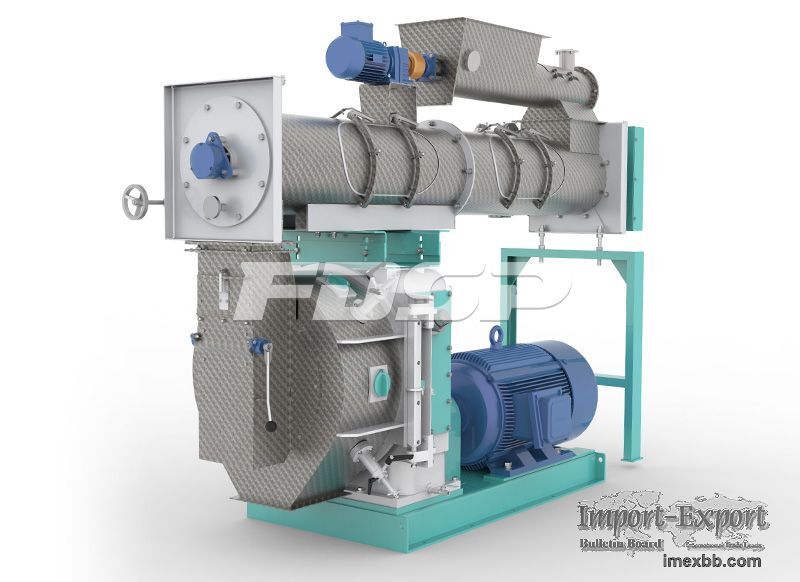

FDSP SZLH508 High Grade Ring Die Pellet Mill

FDSP SZLH508 High Grade Ring Die Pellet Mill
SZLH508 high grade ring die pellet mill is mainly used for medium sized feed
mills producing kinds of granule feed which can reduce the cost. It is suitable
for chicken, duck, goose, pig, cattle, sheep, fish, shrimp, crab breeding and
etc.
This pellet mill is more suitable for granule feed production of medium-sized
feed mills
FDSP Poultry Ring Die Pellet Mill Feature Description:
1.This machine is with small occupy, low power consumption, low noisy and
adjustable feeding.  It also featured with compact structure, beautiful
appearance and  stable performance
2. The main transmission casing is made by casting with large bearing, good
stability, long service life.
3. Gear directly-connecting driving is adopted for high efficiency; the
capacity could be 15% higher than belt pellet mill, High precision aircraft
grade gear grinding process is adopted for ensure the stable and low noisy gear
driving.
4.the feeding system of this machine is controlled by stepless variable
frequency motor, and easy to adjust the speed.
5. Be equipped with safety pin which will broke if main motor overloaded to
protection.
cattle feed plant : FDSP company
6. Be equipped with two cutter which can control the length of granule
effectively
7. Full stainless steel feeder, conditioner and door cover will avoid the
corrosion to pollute the raw material, with long service life
pellet mill for sale: FDSP
8. This machine has high output, low noise, low power consumption, long service
life, easy to use and other features
9. Humanized design, careful for safety operation and use: the door cover is
equipped with travel switch, the main motor will automatically power off to
achieve active protection when the door cover opened, , in addition, the
transmission parts are with closed shell.
10. the ring die are assembled with clamp type which is easy to change and
reliable in driving
11. single stainless steel conditioner can be optional to meet the requirement
for normal poultry feed production.
12. double stainless steel conditioner can be optional to meet the requirement
for high grade poultry feed production.
13.double jacket conditioner can be optional to meet the requirement for normal
aqua feed production.
More information you can click here
14.double jacket conditioner and retentioner can be optional to meet the
requirement for middle grade  aqua feed production.
13.double jacket conditioner, retentioner and DDC can be optional to meet the
requirement for high grade aqua feed production.
Parameters
Capacity: T/H 10-15（¢3.5   1：10 for normal broiler feed formula）
Main power  KW 110/132/160
Power of screw feeder KW 1.5（variable frequency）
Power of conditioner KW 7.5
Rotation speed of screw feeder rpm 12-120
Conditioner shaft rotation speed rpm 250
Ring die inner diameter  mm 508
Ring die working width  mm 155
Ring die linear velocity m/s 7.5

Minimum Order: 1 sets
