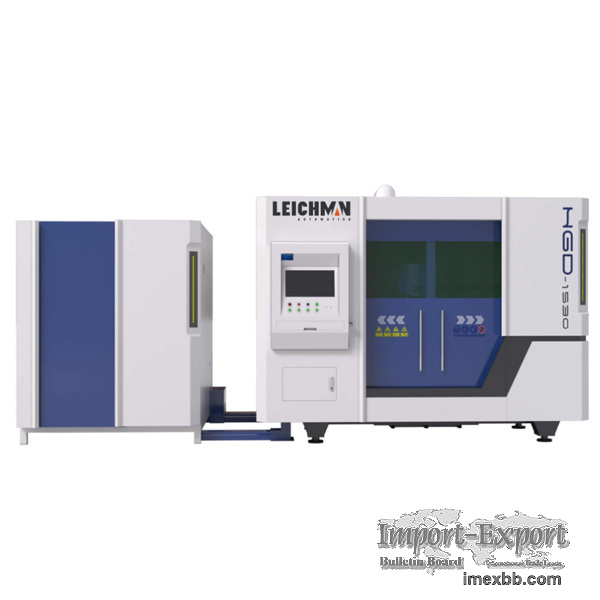

Fiber Laser Cutting Machine with Exchange Table

Fiber Laser Cutting Machine with Exchange Table
Product Description
Hoston laser cutting machines use cast iron bed with high carbon content,
compressive strength and hardness. High shock absorption and wear resistance.
Casting performance and cutting performance are good.
The machine has good lubricity, corrosion resistance and dimensional stability,
and lower bed notch sensitivity and thermal sensitivity. It reduces the loss of
the equipment during use, and reduces the processing error caused by the
vibration of the bed.
The Leichman fiber laser cutting machine with exchange table can cut a variety
of metal plates, mainly suitable for fast cutting of stainless steel, carbon
steel, manganese steel, galvanized sheet, various alloy sheets, rare metals and
other materials.
Model Working Area(mm) Machine Dimension(mm) Exchange mode
1530 1500x3000 8700x5000x2300 Panning exchange
2040 2000x4000 11000x5700x2300 Panning exchange
2060 2000x6000 15000x5700x2300 Panning exchange
2560(6000W-8000W) 2500x6000 15400x4100x4900 Panning exchange
2560(10000W-20000W) 2500x6000 15750x4380x5240 Horizontal exchange
2580(6000W-8000W) 2500x8000 19800x4100x4900 Panning exchange
2580(10000W-20000W) 2500x8000 20260x4380x5240 Horizontal exchange
25120 2500x12000 28600x7800x5200 Horizontal exchange
