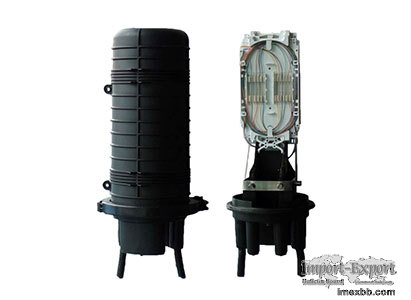

Fiber Splice Closures

The optical cable splice box solves the need for the limited length of the
optical cable and the need for branching of the optical cable on the
transmission line, provides conditions for the connection and branching of the
optical cable and protects the joint.

Fiber optic splice closures Installation Instruction
1. Make sure the optical fiber cable length in enclosure and break out length
are enough.
A— cable fixing length B-- Cable with jacket length inside closure
C— Cable mini. length inside closure D— Break out cable length
2. Strip out cable outside jacket by pipe cutter and longitudinal stripper. The
length is as per above instruction or as per using condition.
3. Cut off the cable port by hacksaw (recommended hacksaw cut position:
approximately 10.0mm to 20.0mm hacksaw cut from tip of cable port), then open
optical fiber splice closure the cable port.
4. Put the stripped optical cable get through the heat shrinkable tube, closure
cable port as per.
5. Fix the cable strengthen core by cable fixing column.
6. Put the stripped optical fiber into fiber splice tray, do splicing and
storage.

Factors to Consider When Choosing fiber optic cable splice closure
01
According to the environment used, choose the optical splice enclosure such as
overhead, direct burial, pipeline or underwater.

02
According to the structure of the optical cable used, treat the corresponding
optical cable joint box.

03
Whether the installation function with optical splitter is required according
to the network structure.

04
According to the type of optical fiber, choose single core or ribbon splice
tray.

Welink is a professional china fiber optic splice closure wholesaler, we
provide optical splice closure, fiber optic networking products, cable assembly
fiber optic, etc. For more info, contact us.

There are many fiber optic products supplier, but we are one of the best
choices for you.
