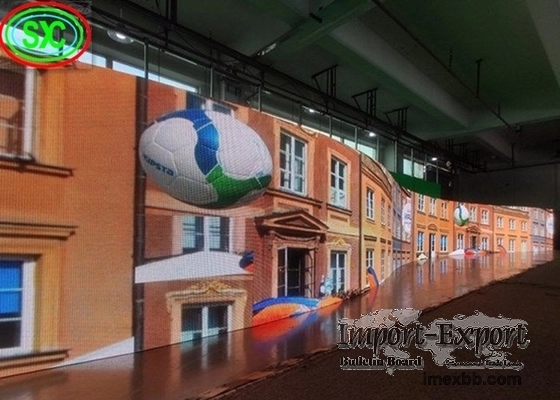

Fine Pixel Pitch P2 Indoor Led Display High Definition Flexible Curve Billb

Fine Pixel Pitch P2 Indoor High Definition Flexible Curve LED Billboards RGB 3
In 1



♦ What we do ?

We are a professional led manufacturer,specialized in this field for 10
years,item mainly cover led displays

both indoor and outdoor,OEM and a chain service are all available,quality good
and perfect service,you

deserve it.



♦ Applications

Stage,Sports,advertising,traff , ic,events,stadium,shopping
center,airport,exhibitions, car shows, fashion

shows, concerts, ceremonies, entertainment,etc.



♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.



♦ Product specification

Indoor SMD P2
Resolution/mm 2
Pixel configuration 1R1G1B
Pixel density/pixels/m² 250000/m2
Module resolution 128*64
Module size/mm 256x128MM
View distance 4-500m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/32)
Frame rate 60Hz
Refresh frequency
>2500Hz

Control mode Computer synchronous
Brightness adjusted range
Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <800W
Average power:/㎡ <300W
Self-check technology
LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring
Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-st , atic,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%


Fine Pixel Pitch P2 Indoor Led Display High Definition Flexible Curve
Billboards 3 In 1 0



♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



♦ Packaging and shipping



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



Fine Pixel Pitch P2 Indoor Led Display High Definition Flexible Curve
Billboards 3 In 1 1





♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are
updated regularly.What’s

more,unique standardized and module production ensure our products continuous
quality.

Competitive Price

With large scale production capacity and professional production technology,our
company have built

effective modular production.We always stick to promote the technical
innovation and reduce cost to

benefit customers.

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special
procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll
recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our
products.



♦ Module:



Fine Pixel Pitch P2 Indoor Led Display High Definition Flexible Curve
Billboards 3 In 1 2



Our team will be forever here to offer you full supports !!!
