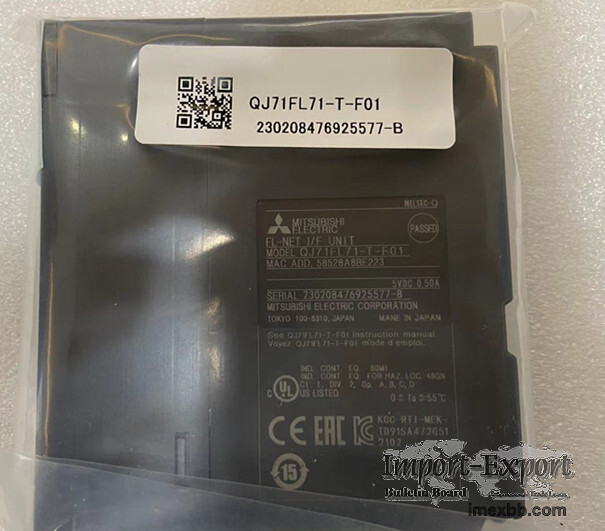

FL Net Interface Moudel Of Q Series QJ71FL71-T-F01 Transmission Mode Baseba

Specification of Mitsubishi FL net interface moudel qj71fl71-t-f01:
1. Transmission instructions
[data transfer speed]
100base-tx: 100Mbps (full duplex / half duplex)
10Base-T: 10Mbps (half duplex)
[transmission mode] baseband
[electronic interface] IEEE802 3 standard (CSMA / CD standard)
[Transport Protocol] UDP / IP FA link protocol
[maximum section length] 100m
[maximum number of stations in the system] 254
[maximum number of sites] 254 modules / all internal address blocks
[minimum station spacing] 2.5m
[cyclic data amount] maximum (8K bits + 8K words) / system, maximum (8K bits +
8K words) / station
[information data capacity] 1024 bytes maximum



2. Link data description
[public storage area] area 1 (bit area) 8K / bit area 2 (word area) 8K words
[virtual address space and physical memory] none
[error record storage area] 512 words
[status storage area] bit area 2K / bit word area 2K
[local station network parameter setting area] 96 words
[network parameter setting area of other stations] 2048 words
[network parameter acquisition area] 512 words
[soft component storage area] 512 words
[information area (instantaneous area)] 1024 bytes * 2 at most (transmit
receive each)
3. Transmission instructions
[information transmission] 500ms or less (1:1 one-way information arrival time)
[token start time]
Newly added: start time = 3000 + (minimum number of sites / remaining 8) * 4 +
1200ms
Joining: joining time = refresh cycle * 3 + number of local stations * 4ms



4. Other specifications
[input / output points] 32 points (I / O allocation: smart)
[5VDC internal current consumption] 0.50a
[noise resistance, voltage resistance, insulation resistance] according to the
power instructions for installing the fl net site
[external dimension h * w * D] 98 * 27.4 * 90mm
[weight] 0.11kg
