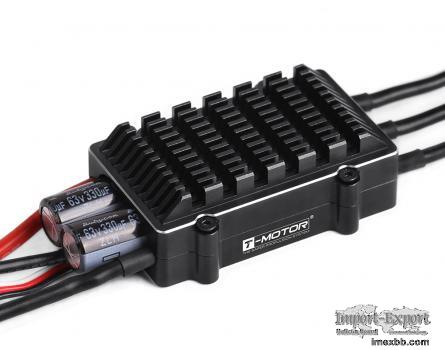

FLAME 60A 12S Electronic Speed Controller (ESC)

FLAME 60A 12S Electronic Speed Controller (ESC)
Product Description
This ESC is specially designed for multi-rotors.
1. Start-up Protection: The T-MOTOR ESC will shut down the motor when it fails
to start the motor normally in 2 seconds by increasing the throttle value. In
this case, you need to move the transmitter throttle stick back
to the bottom position and restart the motor.(Possible causes: poor connection
or disconne-ction between ESC and motor wires; propellers are blocked etC.)
2. Throttle Signal Loss Protection: When the ESC detects loss of signal for
over 0.25 second, it'll cut off the output immediately to avoid greater loss
which may be caused by the continuous high-speed rotation of propellers or
rotor blades. ESC will resume the corresponding output when normal signals are
received.
3. Motor Lock-up Protection: The ESC will try to restart the motor (thrice)
when motor lock-up is detected; if it fails, it will cut off the output and
stop attempting. To restart the ESC and resume its output,
