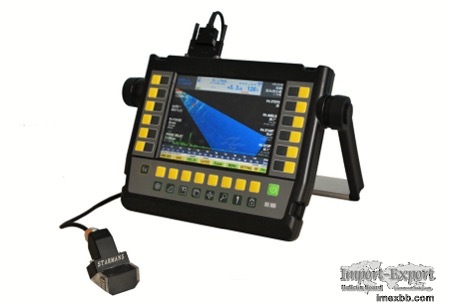

Flow Detectors DIO-1000 PA

The new advanced DEFECTOBOOK® DIO 1000 PA digital ultrasonic flaw
detector is now augmented with phased array imaging capabilities. It is
combining all features of conventional ultrasonic with power of phased
array.
Using the latest generation of electronic components and
microprocessors we have brought the thinnest, lightest and really
portable phased array instrument, which makes your inspection easy and
fast. The standard configuration is 16 parallel (in preparation 32
parallel), and with extendable module 16:64 and 16:128. The
DEFECTOBOOK® DIO 1000 PA complies with all common standards as EN12668-
1, ASME Code case 2541, ASTM E2491, ASTM E2700. The instrument also
combines the powerful advantages of digital design with the detailed
dynamic echo information, using sampling rate 200 MHz, 12-bit.
ADVANTAGES OF DIO 1000 PA
Thinnest phased array instrument
Weight only 1.3 kg with battery
Battery operating time up to 10 hours
Lots of possibilities (A-SCAN, B-SCAN, C-SCAN, Weld manager, EMAT,
Tofd, …)
ENVIRONMENTAL TEST
Tests for Damp heat / Humidity as per norms EN 600-2-78;02; EN 60068-1
Vibration tests as per norm EN 60068-2-6 ed 2:08
Shock tests as per norm EN 60068-2-29:1996+Z1:10
