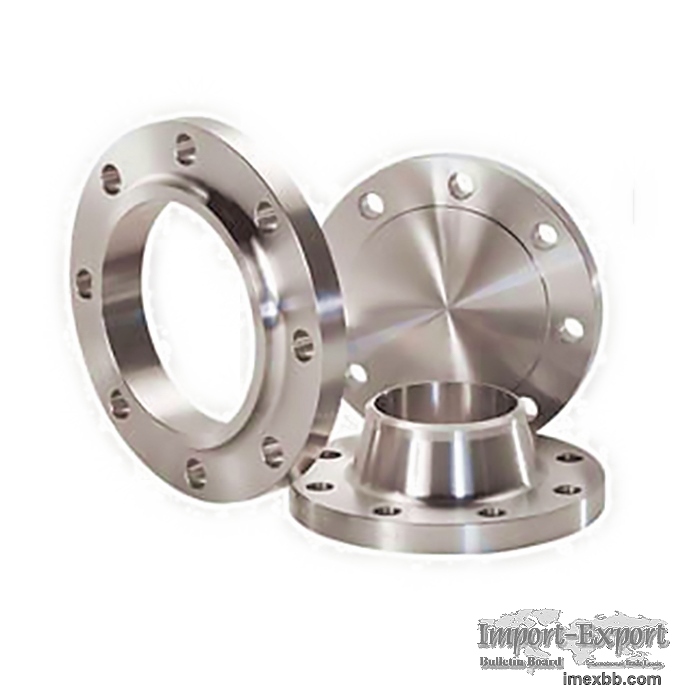

Forged Steel Flange

Carbon steel forged flanges are widely used in various industries due to their
strength, durability, and ability to withstand high-pressure and temperature
conditions. These flanges are manufactured through the forging process,
ensuring high structural integrity and resistance to wear and tear.
1. Types: Slip-On, Welding Neck, Blind, Socket Welding, Threaded, Lap Joint and
Plate flanges, etc.
2.Wall Thickness: Sch10, Sch20 , Sch30, STD, Sch40, XS,Sch80, Sch100, Sch120,
Sch140, XXS;
3.Pressure Rating: Class 150LBS, 300LBS, 600LBS, 900LBS, 1500LBS, 2000LBS,
3000LBS, 6000LBS, 9000 LBS;
4. Surface treatment: Anti-rust oil, black / yellow / transparent / electric
galvanized / hot galvanized.
5. We stock ASME B16.5 Flanges; find the right dimensions and style for any
application.


Forged steel flange has higher precision and performance than the cast flange
and is widely used in different industries for connecting equipment or
pipelines, especially for high temperature and high pressure environments.


Forged flange is a plate-type device, usually in circular appearance, which can
be attached to the ends of pipes, fittings, valves, or other objects to
facilitate assembly and disassembly of the piping system. It offers impressive
mechanical performance as a connecting part.


Manufacturing Standards Referred


ASME B16.5: Dimension standard for steel pipe flanges and flanged fittings

ASME B16.47: Large diameter steel flanges NPS 26 to NPS 60

MSS-SP44: For steel pipeline flanges

API 605: For large diameter carbon steel flanges
Application Fields


Industry Example Applications
Oil and Gas Pipelines, refineries, offshore platforms
Petrochemical Chemical processing plants, storage tanks
Power Generation Power plants, nuclear facilities
Water Treatment Water and wastewater treatment plants
Automotive Engine components, exhaust systems
Construction Structural applications, HVAC systems

Minimum Order: 100 sets
