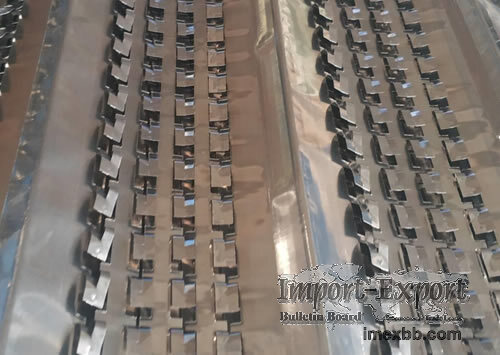

Formwork Rib Lathe

High rib lath is an assembly free expanded metal sheet for permanent formwork
to concrete construction.

Structure
This ribbed lath has longitudinal ribs, small inverted ribs and small
herringbone meshes.
The profile of Hy Rib open mesh in combination with its ribs provide an
inherently stiff sheet along the length.

How to use
Hi rib lath is generally fixed between the out layers of reinforcement.
Ways of fixing include: stapled, nailed or screwed to the steel reinforcing
substrate
The hi ribbed mesh formwork allows concrete slurry to flow through the
keyjoint. This kind of form work rib is primarily used in construction joint
applications, it is also used in wall, beam, column and soffit slab
constructions.

Quality
High Rib Lath is manufactured from Hot dipped galvanized steel meeting stardard
BSEN 10327, BS EN10142.

Application
Hi Rib Formwork is widely used as concrete permanent assembly-free formwork, in
construction reinforcement of :
Tunnels bridges;
Sewage systems;
Subways;
Retaining walls;
High rise building projects;
Non-regular building;
Bending pattern;
other uses.
