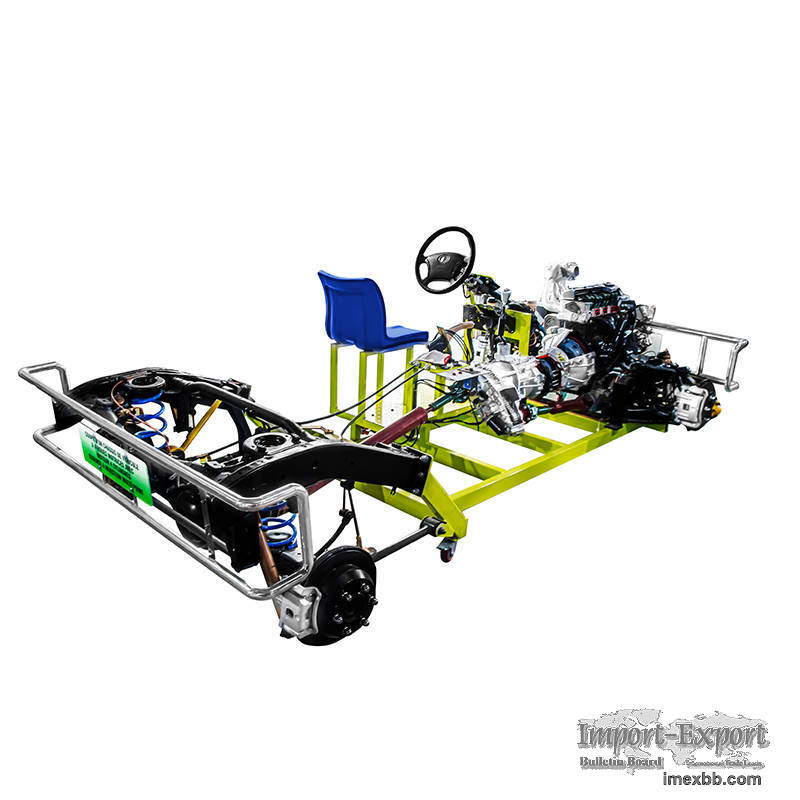

Four-wheel drive chassis system experimental vehicle

I. Product introduction
The equipment uses the automobile four-wheel drive chassis systems as the
basis, fully demonstrating the composition structure of the automobile chassis
systems. Including automobile front and rear suspension system, steering
system, transmission system, manual transmission and gear mechanism, braking
system and other systems, the installation of casters movable table and other
components.
Applicable to the teaching needs of the theory and maintenance training of the
chassis systems in schools.

II. The functional characteristics
1. Install the real car chassis systems (including front and rear suspension
system, steering system, transmission system, manual transmission and gear
mechanism, braking system), fully demonstrate the composition of the car
chassis systems structure.
2. Can be true to the car chassis systems show and disassembly training.
3. Dissected manual transmission can be dynamic demonstration and testing,
reducer motor input power, the transmission can be shifted and dynamic testing.
4. The base of the training table is welded with steel structure, the surface
is treated with spraying process, with self-locking casters, flexible movement,
safe, reliable, durable.

III. Technical specifications
Dimension: 2600×1700×1500mm(L×W×H)
Power supply: 220V
Working temperature: -40℃～+50℃
Host: the original device
Electric motor: 220V/250W 15rpm
Steel pipe: 60 * 40 * 3mm
Mobile casters: 100*50mm

Minimum Order: 1 sets
