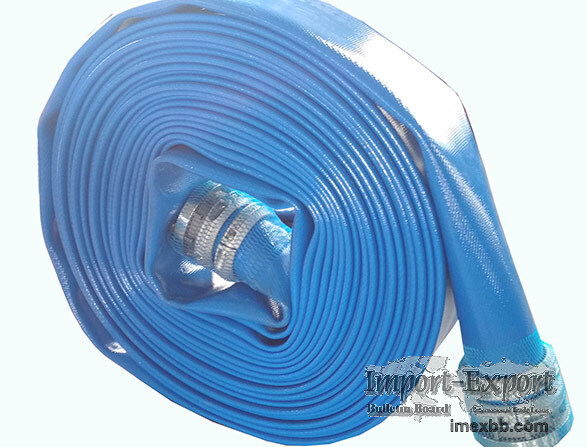

Frac PU Layflat Hose

The outer cover of our PU layflat hose has been produced with extra thickness
for tough environment. The wokking temprearue of our PU layflat hose range
from -50 C deg to 80 C deg (-58 F deg to +176 F deg).

Our fracking hose is made from extruded thermoplastic polyurethane(TPU) and
circular woven polyester jacket. The "through-the-weave" production method
gives a very strong bonding between cover and tube as well as firmly adhesive
of the jacket.

The hose has high resistance against commonly used chemicals and has excellent
resistance to UV. The abrasion resistance of the PU layflat hose is very good,
making the hose ideal for use in the extremely tough places.

Specification of Frac PU Layflat Hose
ID Wall
thickness Weight WP BP Tensile
Strength Elongation
at WP Expansion
at WP
Inch Inch Ibs/ft kg/m PSI PSI Ibs
4" 0.15 1.35 2 300 900 22000 ＜1% ＜3%
6" 0.15 1.68 2.5 250 750 33000 ＜1% ＜3%
8" 0.17 2.01 3 200 600 89000 ＜1% ＜3%
10" 0.17 2.8 4.2 200 600 100100 ＜1% ＜3%
12" 0.17 3.3 5 150 450 134000 ＜1% ＜3%

SEAPEAK is one of the leading pvc garden hose manufacturers, Our mainly
production including china pvc,pvc hose china hose and etc. We not only supply
high quality products, but also premium custom service. We are looking forward
to start a project with you!RFQ today.

Minimum Order: 1 sets
