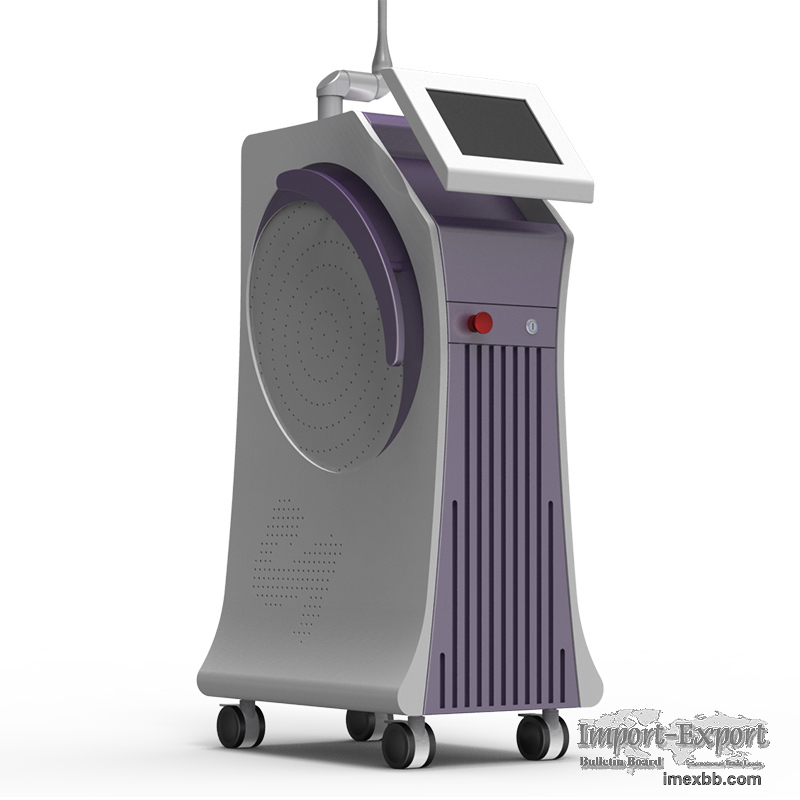

Fractional CO2 Laser Skin Resurfacing Equipment

Model: QM-10600

QM-10600 IS 3 IN 1 SYSTEM : FRACTIONAL, SURGICAL, VAGINAL

Applications:

 Traditional Fractional Model and Surgical Mode:

1) Skin renewing and resurfacing
2) Wrinkle removal, skin tightening
3) Acne and scar removal, melasma removal
4) Smooth scars like burn, surgery, traumatic, and stretch marks, etc
5) Remove intractable chloasmas and pigmentation
6) Sun damage recovery

 Vaginal Mode:

1)Tighten vagina –Fast tightening, lasting constriction, tightness to improve
60%;
2)Clean the vagina – Deep anti-aging, young level to improve 80%;
3)Moist vagina – Improving secretion, moisture level to improve 80%;
4)Pink vagina – Vulva rejuvenation, lighten pigment and pinks labia parts,
delicate degree to improve 70%

Working Principle:

Unlike traditional laser, fractional laser will only cover part of the skin
tissue, leaving the surrounding tissue intact, and then cause a series
biochemical reactions inside the skin, thus to reach the results of skin
lifting & resurfacing, pigments and scar removal, etc, finally let the skin
return to young again. The unaffected areas act as a reservoir for more
effective and rapid tissue healing and collagen production, thus lift the skin
and removes speckles and pigments

For Vaginal rejuvenation:

Use an articulate arm probe with automatically 360° rotation technology,
producing in 50-70℃ at a controlled depth inside the vaginal mucosa -
stimulates collagen contraction, restructuring and regeneration; promotes
collagen fiber proliferating, remodeling; improves vaginal mucosa
microcirculation; increases cell secretion and dynamic reaction function;
corrects PH value of vaginal inside; improves the inside environment; achieve
female private parts to significant lasting firming, nourishing and restoring
harmonious sexual life.

Specialty of QM-10600:

1. USA Coherent brand – Metal RF Tube;
Even output energy, deeper penetration ( 8-10mm under the skin)
Long lifespan: 8-12 years.
Thinner spot: ≥0.01mm.

2. 3 in 1 system, easy and convenient for operation

3. Imported excellent 7 articular optical-arm, easy operated and greatly
reduces the energy loss;

4. Best fractional probe- CPG (Central Pattern Generator), big and even
energy output, deep penetration;

5. 3 scan modes: Sequence, Random, and Midsplit
6. Various scan shapes which can be adjusted by users, scan size
0.1*0.1mm-20*20mm
7. Ultra-quiet pump used, lower noise but larger water flow;
8. The screen can be folded up and down

Features：
1） Adopted RF Metal tube imported CO2 laser generator from Coherent Inc,
brings maximum results and minimum downtime, Europe CE and ROHS approved,
authority of security
2） Fractional + Ultra Pulse + Vaginal 3 in 1 system
3） 7 patterns sizes adjustable suitable for different treatment area
4） Korean imported Laser Arm, output energy is more stable, smallest
energy reduction
5） Aiming Beam adjustable, insure precise treatment
6） Mini spot size 0.1mm for fast skin recovery
7） Only 1-3 times Fast and effective solve scar and vaginal problem
8） 360 degree scanning ability of fractional handle


Technical Specifications:

Laser type RF Tube (USA Coherent)
Output power 40W
Wavelength 10.6μm, far-infrared laser
Display 10.4 inch color touch LCD screen
System & Probes 3 systems, 5 probes
Pulsed Radio Frequency 0.530W
Scan Graphics (7 graphics) Square, rectangle, round, triangle, oval, 6-
diamond shape, line
Scan Graphic Size 0.1x0.1mm – 20x20mm
Scan mode (3 modes) Random, Sequence, the Maximum Distance A&B,
Equidistance, Fast Shot
Working State Hyper-pulsed mode
Pulse Duration 0.1-10 ms
Pulse energy 10mj to 130mj is optional for each dot
Spot Distance 0.1-2.6 mm
Interval 0-6s
Repeat 1-5000 ms
Overlap 1-20 times
Condenser Focus F=50mm
Beam divergence angle 0.3mrad
Spot Size 0.01mm at the focus
Aiming Beam Less than 2Mw, 635nm red semiconductor laser
Beam Transport Device 7-joint articulated optical arm
Laser Apparatus Sealed off laser unit stimulated by direct current
Cooling System Air
Power Supply 220V/110V
Dimension of machine 55x45x108cm
Package Standard 2 cases standard:
Case 1: 68x56x125cm;Case 2: 80x40x30cm
Net Weight 46kgs
Gross Weight 72kgs

Minimum Order: 1 sets
