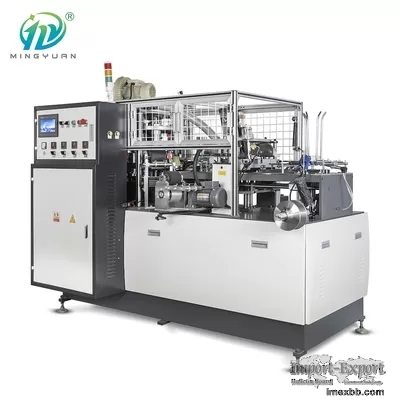

Full Automatic High Efficiency Paper Cup Making Machine 2 ~16 OZ

Model
Dubai double wall High speed automatic disposable paper coffee paper cup
making machines
Paper Cup Size:
2 ~16 OZ (Mould exchangeable, Max Cup Height:136mm , Max Bottom width :72mm)
Rated Speed:
70-85pcs/min ( Speed affected by cup size, paper quality & thickness),
9OZ, 280GSM paper cup Stable running speed 80 pcs each min
Raw Material:
Only one-side PE coated paper
( Popular for Hot drink cups )
One or Two side PE coated Paper
(Popular for Hot and Cold drink Cups)
Suitable paper weight:
140~250gsm
140-350gsm
Power Source:
50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power
requirement.
Total Power:
6.5 KW
8.5 KW
Total Weight:
GW/NW: 1800KGS/1700KGS
Pack Size (L*W*H)
2100x970x1700mm(Machine Packing Size),
1250x860x1860MM(Counting Machine Packing Size)
Working Air Source:

No need provide Air
Air pressure:0.4Mpa;
Air Out-put:0.6m³/minute
Need to buy Air Compressor(by user)
Cup Side Welding:
Copper Heater
Ultrasonic Heater
Cup Bottom Heating:
Heater Knurling
1side PE paper by heater knurling;
2side PE paper by cool device (circle
water) knurling.
Cup Bottom Knurling:
Heater Knurling (if use single PE coated paper)
Full Automatic High Efficiency Paper Cup Making Machine 2 ~16 OZ 0

Click to Enlarge
