Full Hydraulic Surface Top-hammer Drilling Rig

Our full-hydraulic open-air top-hammer drilling rig is manufactured to meet the
market's demand for efficient and environmentally-friendly drilling. This
series of products is equipped with a two-stage dust removal device, which can
effectively control the dust at the drilling site and achieve dust-free
production in the mine. Taiye has the truck mounted rotary drilling rig and
crawler rock drill.

Know More about Full Hydraulic Surface Top-hammer Drilling Rig

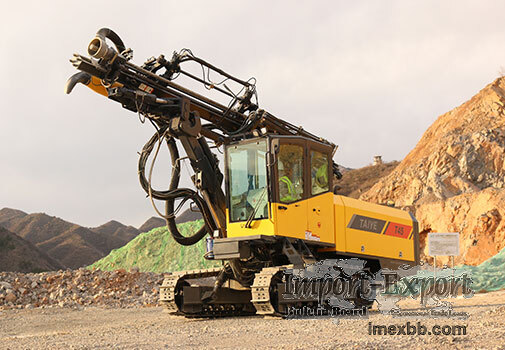

Among them, TAIYE-T45 uses the Japanese-made YAMAMOTA Y-100 high-power
hydraulic hammer drill, which is reliable in quality, sturdy and durable, and
has fast perforation speed. It greatly reduced production energy consumption
and pollutant emissions. The unique easy-control rock drilling system can
automatically adjust the propulsion speed, propulsion pressure, turning torque
and impact pressure according to the rock conditions to achieve the best
working condition.

TAIYE all-hydraulic open-air top hammer drill rigs are your excellent
assistants in terms of safety, perforation efficiency, fuel consumption and
environmental protection effects. Find ideal rigs at taiyedrilling.com right
now!

What is Top Hammer Drill Rig?
The top hammer drill rig is a percussive rotary drilling rig. The front end is
directly connected to the drill bit and the back end is connected to the drill
rod. When rock drilling, the impactor dives into the hole, and the piston in
the impactor reciprocates to strike the shank through the gas distribution
device (valve) so that the drill bit generates a whirling force on the rock at
the bottom of the hole.

The surface drilling rig produced by Taiye drilling rigs has the
characteristics of small size and light weight, which is suitable for places
where large and medium-sized drilling rigs cannot be operated. As one of the
earliest surface drilling rig manufacturers in China, we have accumulated 25
years of experience in the drilling rig industry, established a professional
team, and have won the long-term trust and continuous cooperationof many
customers with effective solutions and excellent quality assurance. Our top
hole drilling rig uses electric energy as power, with low noise and strong
power. The drilling speed is 3-8 times that of general rock drills, the rock
hardness reaches 20, and the drilling depth per hour is 8-16 meters.

How does a surface drilling machine Work？
The working principle of the surface drilling rig is the same as that of the
ordinary impact rotary pneumatic rock drill. The pneumatic rock drill
integrates the impact rotary mechanism, and the impact energy is transmitted to
the drill bit through the drill rod. While the top hole drilling rig separates
the impacter and dives into the bottom of the hole. No matter how deep the
drilling is, the drill bit is directly installed on the impactor, the impact
energy does not need to be transmitted through the drill pipe, thus reducing
the impact energy loss.

Applications of Top Hole Drilling Rig
Top hammer drill rigs are often used for drilling rock anchor holes, bolt
holes, blast holes, grouting holes, etc. in urban construction, railways,
highways, rivers, hydropower and other projects.

How Many Types of Top Hammer Drill Rig are There?
There are two types of surface drilling machines: integral type and split type.
According to the exhaust mode, it is divided into side exhaust and center
exhaust. According to the shape of the cemented carbide embedded on the working
surface of the top hole drilling rig, there are blade-type top hammer drill
rig, column-tooth top hammer drill rig and mixed type top hammer drill rig. The
integral top hammer drill rig is single-piece with the head and the tail
integrated. It is easy to process and use, and can reduce the loss when energy
is transmitted. The head of the split-type top hammer drill rig is separated
from the shank tail, and the two are connected by special threads. When the
head of the surface drilling rig is damaged, the shank can still be used to
save steel.

What is the Strength of Your surface drill rigs for sale?
Our full-hydraulic open-air top-hammer drilling rig is manufactured to meet the
market's demand for efficient and environmentally-friendly drilling. This
series of products are equipped with a two-stage dust removal device, which can
effectively control the dust at the drilling site and achieve dust-free
production in the mine.

Minimum Order: 1 pieces
