Fully Automatic Roll Fed Automatic Paper Bag Making Machine With Twisted Ha

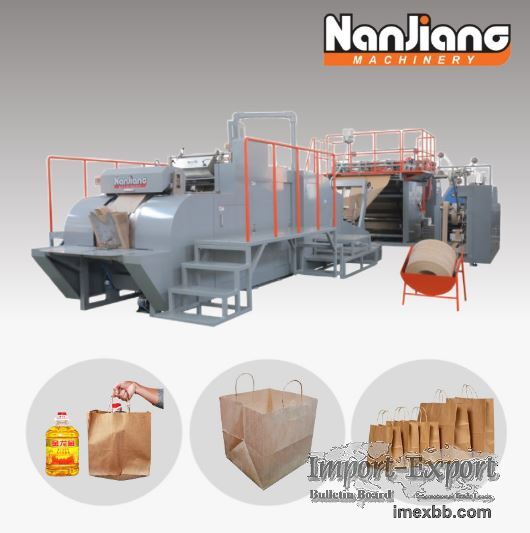

WFD-550 Fully Automatic Roll Fed Paper Bags With Twisted Handle Machine



Properties and uses:



This is special machine for the production of shopping bags (block bottom bags)
with twisted rope handle made of paper. The material can be paper roll or
printed paper roll. Whole machine is controlled by computer central control
system with touch screen and servo motor for cut-off length control.


It can produce variable sizes paper bag and paste paper handle inline for
completely paper bags without any manual process. The machine automatic paper
fed from roll, tube forming, cut-off, bottom forming, bottom glue, bag forming
and final bag output. All steps are completed in-line; This machine is an idea
equipment for Twist or Flat handle square bottom paper bag.



Technical parameter:



Machine Model WFD-550
Paper Roll Width 630-1450mm
Paper Bag Width
(if without handle) 220-550 mm
(190-450 mm)
Paper Tube Length
(if without handle) 330-720mm
(330-750 mm)
Bag Bottom Width 80-250 mm
Paper Thickness
(if without handle) 100-150gsm
(80-150 gsm)
Max. Roll material diameter ￠1200 mm
Material Core Diameter ￠76mm(3″)
Length of twisted rope (customizable) 300-400 mm
Diameter of Twisted Rope 4-6 mm
Handle Patch Length 190 mm
Handle Patch Width 35-50 mm
Handle patch Roll Diameter ￠1000 mm
Paper Patch Roll Width 70-100 mm
Paper GSM for Handle patch 110-250gsm
Speed 50-110Bags/min.
Total Power 42KW
Machine Weight 23000KG
Machine Dimension (L*W*H) 16500 x 5000 x 2600 mm
